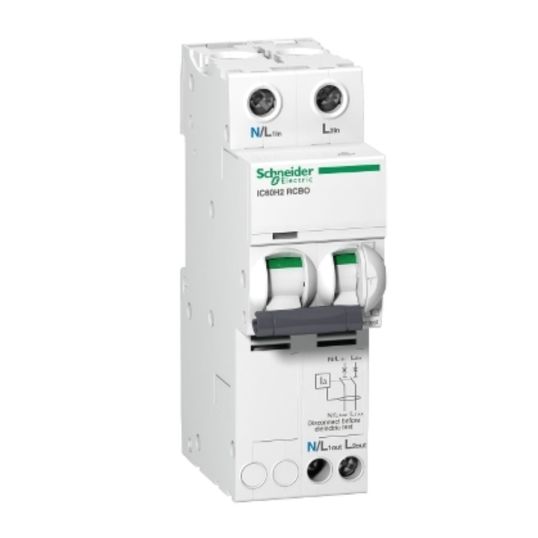

Schneider Earth Leakage Circuit Breaker 2Pole 16 Amp 110V AC 10 kA 2Module 36mm DIN Rail

$Schneider\Schneider_A9D19216.JPG$ $Schneider\Schneider_A9D19216.JPG$

Description

Earth Leakage Circuit Breaker, 16 Amp, 110 Volt AC, 50 Hz, Interrupt Capacity: 10 kA, Trip Sensitivity: 30 mA, Number of Poles: 2, Number of Modules: 2, 36mm Module Width, Trip Characteristic: C Curve, 1-16 mm/1-10 mm Flex/1-25 mm/1-16 mm Rigid Terminal Connection, Screw Clamp, IP20, DIN Rail, White,-15 to 60 deg C, 110mm Height, 36mm Width, 75.5mm Depth

Key Specifications

Barcode (EAN-13)	3606480558689
SKU	SHNA9D19216
Brand	Schneider
Range Name	Acti 9
Product Type	Earth Leakage

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	A9D19216
Colour	White
Current	16 Amp
Connection Type	Screw Clamp
Height	110mm
Depth	75.5mm
Modules	2 Module 36mm
Frequency	50 Hz
Interrupt Capacity	10 kA
Mounting Method	DIN Rail
IP Rating	IP20
Number Of Poles	2 Pole
Temperature	-15 to 60 deg C
Trip Characteristic	C Curve
Terminal Connection	1-16 sq-mm/1-10 sq-mm Flex/1-25 sq-mm/1-16 sq-mm Rigid
Trip Sensitivity	30 mA
Voltage	110 Volt
Width	36mm
