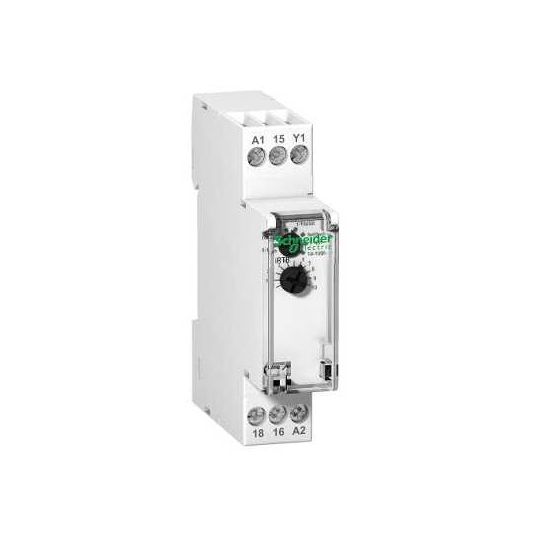

Schneider Time Delay Relay Analogue Symmetrical DIN Rail Mount 1CO Single Shot 0.1-360000s 24-240V/24VDC
Description
Time Delay Relay Analogue, 24-240 Volt AC/24 Volt DC, 8 Amp, 1 Changeover Configuration, Single Shot, 0.1-360000 Seconds, 100000 Cycles Electrical/5000000 Cycles Mechanical, Tunnel Terminal, Fixed/DIN Rail Mounting, IP20, -5 to 55 deg C, 93 mm Height, 18 mm Width, 72 mm Depth
Key Specifications
| Barcode (EAN-13) |
3606480377426
|
|---|---|
| SKU |
SHNA9E16066
|
| Brand |
Schneider
|
| Product Type |
Time Delay Relays
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122300 |
| UOM | EA |
| Vendor Product | A9E16066 |
| Contact Configuration | 1 Changeover |
| Current | 8 Amp |
| Depth | 72 mm |
| Operating Cycles | 100000 Cycles Electrical/5000000 Cycles Mechanical |
| Height | 93 mm |
| IP Rating | IP20 |
| Mounting Method | Fixed/DIN Rail |
| Temperature | -5 to 55 deg C |
| Terminal Connection | Tunnel |
| Voltage | 24-240 Volt AC/24 Volt DC |
| Timing Function | Single Shot |
| Timing Range | 0.1-360000 Seconds |
| Width | 18 mm |
