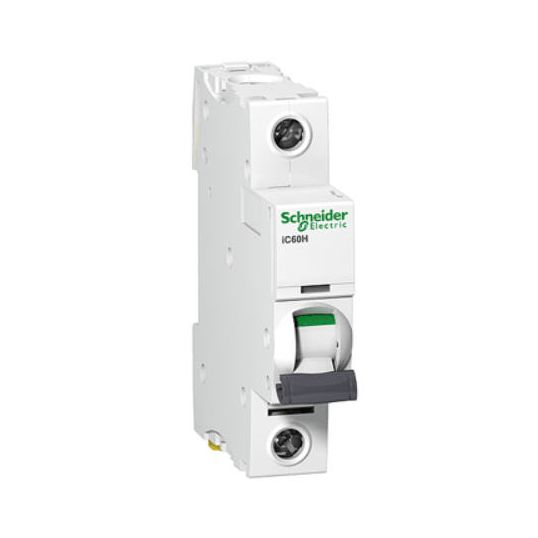

Schneider Miniature Circuit Breaker C Curve 10Amp 6 kA 1Pole 1Module 18mm DIN Rail/Clip-On Mount
Description
Miniature Circuit Breaker C Curve, 240 Volt, 10 Amp, 50/60 Hz, 6 kA Interrupt Capacity, 1 Module 18 mm, 1 Pole, Toggle Actuator, 2 Nm Top/Bottom Tightening Torque, 10000 Cycles Electrical Life, IP20, DIN Rail/Clip-On Mounting, White, 35 to 70 deg C, 85 mm Height, 18 mm Width, 78.5 mm Depth
Key Specifications
| Barcode (EAN-13) |
3606480513121
|
|---|---|
| SKU |
SHNA9F44110
|
| Brand |
Schneider
|
| Range Name |
Acti 9 iC60N
|
| Product Type |
Mini Circuit Breakers
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | A9F44110 |
| Actuator Type | Toggle |
| Colour | White |
| Current | 10 Amp |
| Depth | 78.5 mm |
| Electrical Life | 10000 Cycles |
| Frequency | 50/60 Hz |
| Height | 85 mm |
| Interrupt Capacity | 6 kA |
| IP Rating | IP20 |
| Modules | 1 Module 18 mm |
| Mounting Method | DIN Rail/Clip-On |
| Number Of Poles | 1 Pole |
| Temperature | 35 to 70 deg C |
| Tightening Torque | 2 Nm Top/Bottom |
| Voltage | 240 Volt |
| Width | 18 mm |
