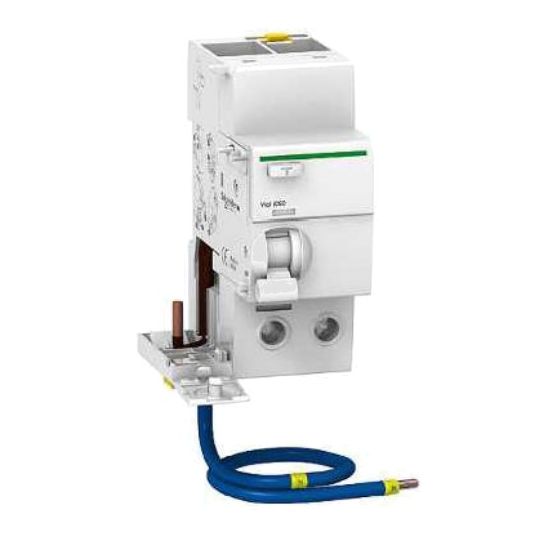

Schneider Earth Leakage Add-on Block Circuit Breaker 2Pole 63A 240VAC 300mA 2Module 54mm DIN Rail Clip-on Mount

Description

Add-On Earth Leakage Module, 240 Volt AC, 63 Amp, 50/60 Hz, 300 mA Trip Sensitivity, 2 Modules, 54mm Module Width, 2 Poles, Tunnel Terminal, IP20 Conforming to IEC 60529, IP40 Conforming to IEC 60529, DIN Rail, Clip-on, 1-25 mm Flexible, 1-35 mm Rigid Conductor, 3.5 N/m Bottom Tightening Torque, White,-5 to 60 deg C, 91mm Height x 54mm Width x 73.5mm Depth

Key Specifications

Barcode (EAN-13)	3606480551819
SKU	SHNA9V06663
Brand	Schneider
Range Name	Acti 9 iC60H
Product Type	Earth Leakage

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	A9V06663
Conductor Size	1-25 sq-mm Flexible - 1-35 sq-mm Rigid
Current	63 Amp
Depth	73.5 mm
Height	91 mm
Frequency	50/60 Hz
IP Rating	IP20/40
Modules	2 Module 54mm
Mounting Method	DIN Rail/Clip-on
Number Of Poles	2 Pole
Terminal Type	Tunnel
Tightening Torque	3.5 Nm Bottom
Temperature	-5 to 60 deg C
Width	54 mm
Trip Sensitivity	300 mA
Voltage	240 Volt
