Schneider Comb Busbar 3P 18mm Pitch 12 Modules 100A

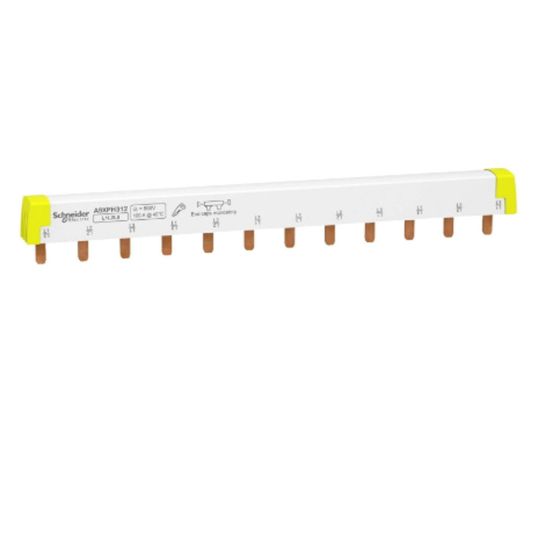

This Acti9 product is a cuttable horizontal comb bus bar 12 modules for Acti9 iC60 or Acti9 iK60. It is dedicated to 3L installations. The type is L1L2L3 (Line). It is a set of 1 device. It is a set of 1 device. It is suitable for 4 devices (3P). The length is 220 mm. The total number of modules of 18 mm is 12. The pin cross section is 16mm2. The type of electric connection is PIN. The number of phase is 3. The number of poles is 3. The I.e. rated operational current at 40 deg C is 100 Amp. The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. The Ui rated insulation voltage is 500 Volt AC. The Ue rated operational voltage is 415 Volt AC. The colour of the device is white RAL9003. The pollution degree is 3. According to IEC 60695-2-1 standard the fire resistance is self-extinguishing at 960 deg C within 30s. It complies with IEC 60947-7-1 and IEC 61439-2 standards.
