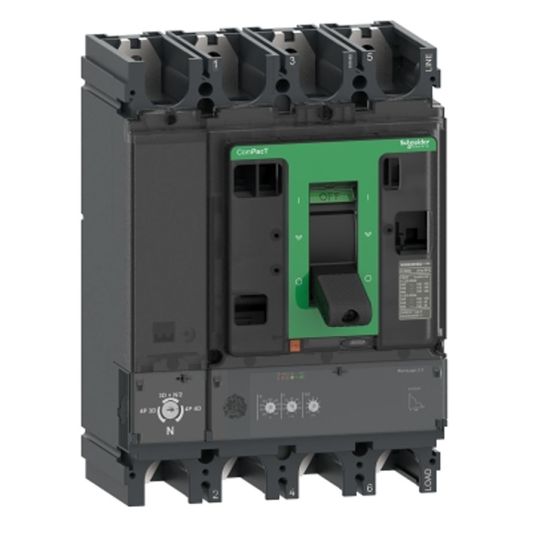

Schneider ComPacT NSX630F Circuit Breaker 36kA 4P4D 4 Pole 415VAC 630A MicroLogic 2.3 Trip Unit
Description
Circuit Breaker, 415 Volt AC, 630 Amp, 50/60 Hz, 36 kA Interrupt Capacity, 4 Pole, MicroLogic 2.3, IP40, -25 to 70 deg C, 185mm Width x 255mm Height x 110mm Depth
Key Specifications
| SKU |
SHNC63F42D630
|
|---|---|
| Brand |
Schneider
|
| Range Name |
Compact NSX630B
|
| Product Type |
MCCBs
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | C63F42D630 |
| Current | 630 Amp |
| Frequency | 50/60 Hz |
| Interrupt Capacity | 36 kA |
| Number Of Poles | 4 Pole |
| IP Rating | IP40 |
| Temperature | -25 to 70 deg C |
| Trip Type | MicroLogic 2.3 |
| Voltage | 415 Volt |
