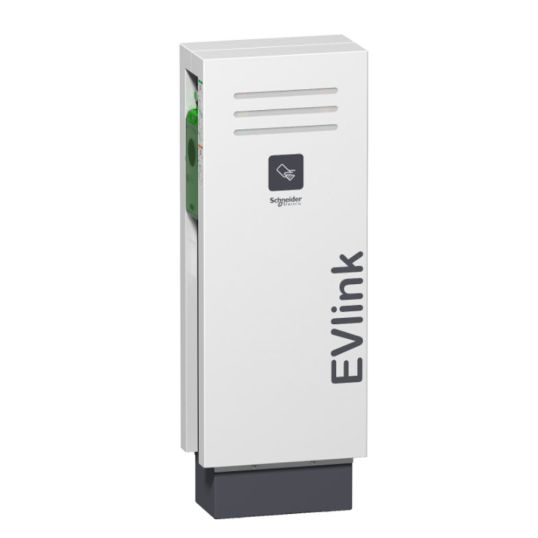

Schneider Evlink Charging Station Parking Floor Standing 22 kW 380-415 Volt AC 32 Amp
Description
Charging Station Parking Floor Standing, 380-415 Volt AC, 32 Amp Input Current, 50/60 Hz, 22 kW Power Output, 0-2000mtr Max. Altitude, OCPP 1.6, IP54, -30 to 50 deg C, -40 to 80 deg C Storage Temperature, 0-95% Relative Humidity, CE, CB, ZE Ready, EV Ready, IEC 61851-22, IEC 61851-1, 1146mm Height, 413mm Width, 220mm Depth, 50 kg
Key Specifications
| Barcode (EAN-13) |
3606480882517
|
|---|---|
| SKU |
SHNEVF2S22P44R
|
| Brand |
Schneider
|
| Range Name |
Evlink
|
| Product Type |
AC Charging Station Parking
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 25175000 |
| UOM | EA |
| Vendor Product | EVF2S22P44R |
| Communication Port | OCPP 1.6 |
| Certifications | CB; CE; EV Ready; ZE Ready |
| Depth | 220 mm |
| Height | 1146 mm |
| IK Rating | IK10 |
| Input Current | 32 Amp |
| Input Voltage | Power Circuit: 230 Volt AC/Control Circuit: 220-240 Volt AC |
| Input Frequency | 50/60 Hz |
| IP Rating | IP54 |
| Operating Temperature | -30 to 50 deg C |
| Power Output | 7 kW |
| Relative Humidity | 0-95% |
| Standards | IEC 61851-1; IEC 61851-22 |
| Width | 413 mm |
| Storage Temperature | -40 to 80 deg C |
