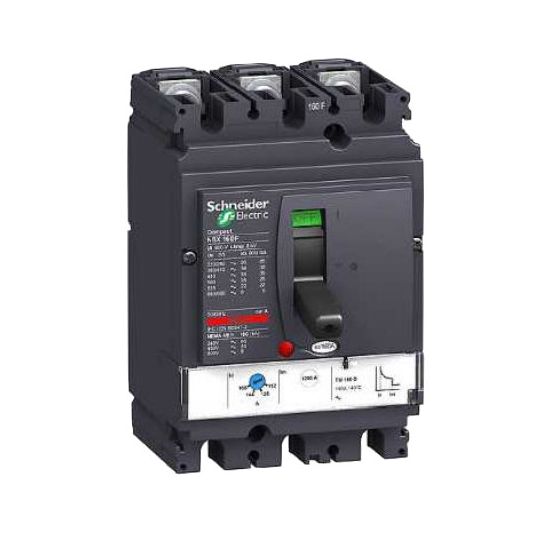

Schneider Moulded Case Circuit Breaker Thermal Magnetic 3 Pole 25 kA 125 Amp IP40
Description
Moulded Case Circuit Breaker, 690 Volt AC, 125 Amp, 50/60 Hz, Interrupt Capacity: 25 kA, Number of Poles: 3, Thermal Setting: 87-125 Amp Adjustable, Thermal Magnetic Trip, Toggle Actuator, IP40 Conforming to IEC 60529, Fixed,-25 to 70 deg C, 161mm Height x 105mm Width x 86mm Depth
Key Specifications
| Barcode (EAN-13) |
3606480011054
|
|---|---|
| SKU |
SHNLV430311
|
| Brand |
Schneider
|
| Range Name |
Compact NSX160
|
| Product Type |
MCCBs
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | LV430311 |
| Actuator Type | Toggle |
| Current | 125 Amp |
| Depth | 86mm |
| Frequency | 50/60 Hz |
| Height | 161mm |
| Interrupt Capacity | 25 kA |
| Mounting Method | Fixed |
| Number Of Poles | 3 Pole |
| IP Rating | IP40 |
| Temperature | -25 to 70 deg C |
| Thermal Setting | 87-125 Amp Adjustable |
| Trip Type | Thermal Magnetic |
| Voltage | 690 Volt |
| Width | 105mm |
