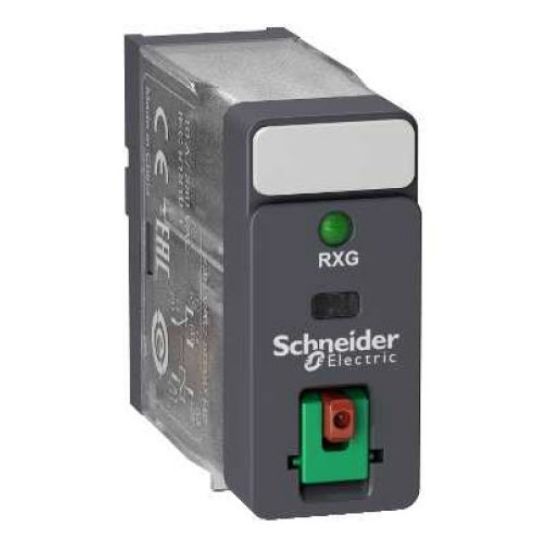

Schneider Interface Relay Plug-in 1CO 10A 24VDC 5 Pin Flat

chevron-left

Description

chevron-down
Interface Relay Plug-in, 30-250 Volt AC/DC, 24 Volt DC Coil Voltage, 10 Amp, 5 Pin Flat, 1 Changeover Configuration, 1100 Ohm, 20 ms Operating Time, <=1800 Cycles/hrs Under Load <=18000 Cycles/hrs No-Load, Plug-In Mounting, IP40, Silver Alloy Contact, -40 to 70 deg C, 42.4 mm Height, 13 mm Width, 28.8 mm Depth

Key Specifications

chevron-down
Barcode (EAN-13)
3606480688737
SKU
SHNRXG12BD
Brand
Schneider
Product Type
Interface Relays

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 1
UNSPSC Class 39122300
UOM EA
Vendor Product RXG12BD
Contact Material Silver Alloy
Current 10 Amp
Contact Configuration 1 Changeover
Mounting Method Plug-In
Depth 28.8 mm
IP Rating IP40
Height 42.4 mm
Operating Coil Voltage 24 Volt DC
Operating Cycles <=1800 Cycles/hrs Under Load <=18000 Cycles/hrs No-Load
Operating Time 20 ms
Pin Configuration 5 Pin Flat
Temperature -40 to 70 deg C
Resistance 1100 Ohm
Voltage 30-250 Volt AC/DC
Width 13 mm
