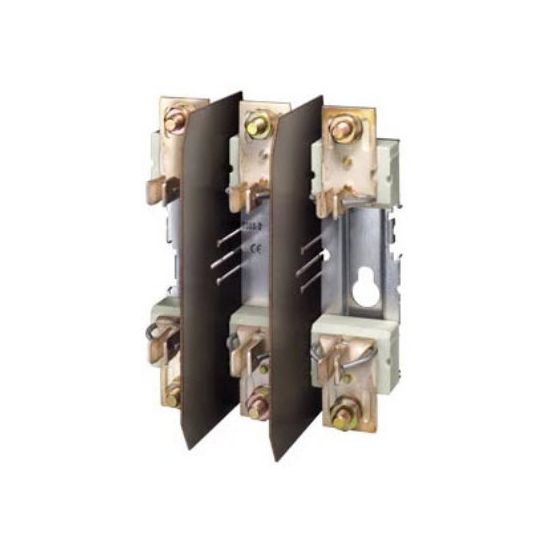

Siemens Open Fuse Base LV HRC 3 Pole DIN Size 1 250A 690VAC 25 kA
Description
Open Fuse Base LV HRC, 690 VAC, 250 Amp, 2.5 to 50 mm Cable, Number of Poles: 3 Pole, M10 Screw Connection, Rated Breaking Capacity: 25 kA, Fixed Mounting, 203mm Height x 146mm Width x 84mm Depth, DIN Size 1
Key Specifications
| SKU |
SIE3NH4230
|
|---|---|
| Brand |
Siemens
|
| Product Type |
Fuse Bases
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | 3NH4230 |
| Cable Size | 2.5-50 sq-mm |
| Connection Type | M10 Screw |
| Current | 250 Amp |
| Dimensions | 203 mm Height x 146 mm Width x 84 mm Depth |
| Mounting Method | Fixed |
| Number Of Poles | 3 Pole |
| Standard Reference | DIN Size 1 |
| Rated Breaking Capacity | 25 kA |
| Voltage | 690 Volt AC |
