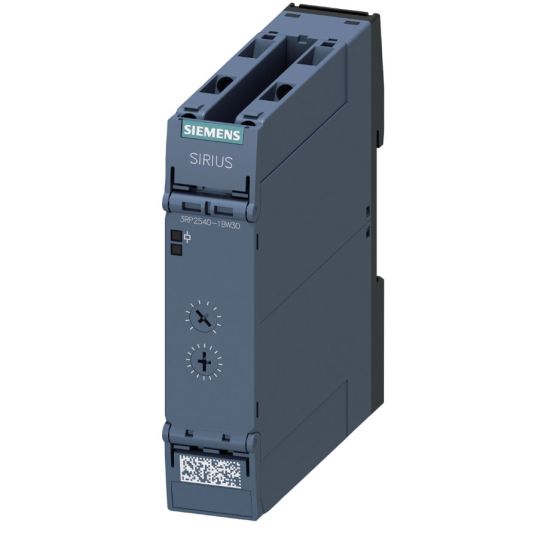

Siemens Time Delay Relay Electronic Rail Mount 2CO Off Delay 0.05-600s 12/240VAC/DC

$Siemens\Siemens_3RP25401BW30.jpg$ $Siemens\Siemens_3RP25401BW30.jpg$

Description

Time Delay Relay Electronic, 12/240 Volt AC/DC, 2CO, Timing Function: Off Delay, Timing Range: 0.05-600 sec, 10000000 Mechanical, 100000 Electrical Cycles, 20 to 12 AWG Solid, 20 to 14 AWG Stranded, Tightening Torque: 0.6-0.8 N/m, Screw Terminal, Rail Mount, IP20, AgSnO2, -25 to 60 deg C, 100 mm Height, 22.5 mm Width, 90 mm Depth

Key Specifications

SKU	SIE3RP25401BW30
Brand	Siemens
Range Name	Sirius 3R
Product Type	Time Delay Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	3RP2540-1BW30
Conductor Size	20 to 12 AWG Solid/20 to 14 AWG Stranded
Contact Configuration	2 Changeover
Depth	90 mm
Height	100 mm
Mounting Method	Rail
IP Rating	IP20
Operating Cycles	10000000 Mechanical/100000 Electrical Cycles
Temperature	-25 to 60 deg C
Tightening Torque	0.6-0.8 N/m
Terminal Connection	Screw
Timing Function	Off Delay
Timing Range	0.05-600 Seconds
Voltage	12-240 Volt AC/DC
Width	22.5 mm
