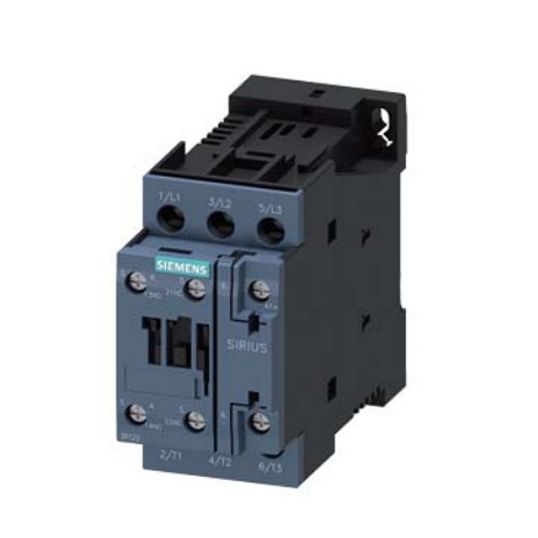

Siemens SIRIUS 3RT Contactor 3 Pole 7.5KW 17A AC3 40A AC1 24VDC Coil 1 Normaly Open and 1 Normaly Closed DIN Rail Mount
Description
Contactor, 24 Volt DC Operating Coil, 690 Volt Contact, 1NO+1NC, AC3 Rating (kW): 7.5 kW, AC3 Rating (Amps): 17 Amp, AC1 Rating (Amps): 40 Amp, 3 Pole, Screw Terminal, IP20, DIN Rail Mounting, -25 to 60 deg C, 85 mm Height, 45 mm Width, 107 mm Depth
Key Specifications
| Barcode (EAN-13) |
4011209832459
|
|---|---|
| SKU |
SIE3RT2025-1BB40
|
| Brand |
Siemens
|
| Range Name |
Sirius 3R
|
| Product Type |
Contactors General
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | 3RT2025-1BB40 |
| AC1 Rating (Amps) | 40 Amp AC1 |
| AC3 Rating (Amps) | 17 Amp AC3 |
| AC3 Rating (kW) | 7.5 kW |
| Contact Configuration | 1 Normally Opened & 1 Normally Closed Aux |
| Depth | 107 mm |
| Height | 85 mm |
| Mounting Method | DIN Rail |
| Number Of Poles | 3 Pole |
| Temperature | -25 to 60 deg C |
| Terminal Connection | Screw |
| Width | 45 mm |
