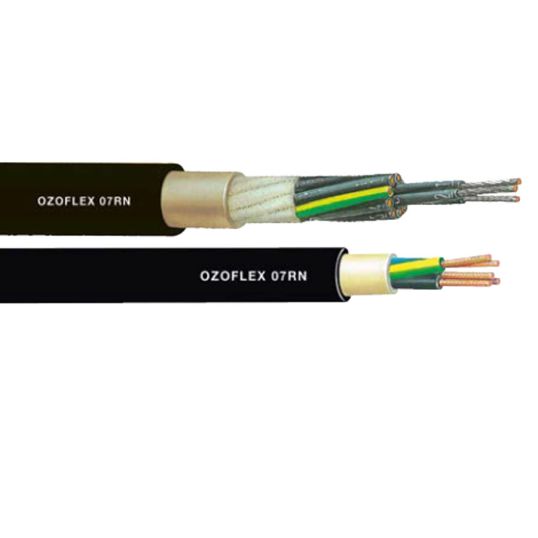

Siemens Ozoflex Flexible Cable Heavy Duty 4 Core & Earth 6mm Copper 0.6/1kV EPR Compound/CSP Black
Description
Flexible Cable Heavy Duty, 6 mm, Stranded Copper, 0.6-1 kV, 4 Core + Earth, 15 N/mm Tensile Strength, Brown/Black/Blue/Grey/Green/Yellow Core, EPR Insulation, CSP Elastomer Sheath, Black Sheath, 90 deg C, AS/NZS 1125 AS/NZS 3191 AS/NZS 5000-1 AS/NZS 3008.1.1:2009
Key Specifications
| SKU |
SIE5DH2507
|
|---|---|
| Brand |
Siemens
|
| Range Name |
Ozoflex
|
| Product Type |
Flexible Cable Heavy Duty
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 500 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 5DH2507 |
| Conductor Size | 6 mm |
| Conductor Type | Stranded Copper |
| Core Colours | Brown/Black/Blue/Grey/Green/Yellow |
| Insulation Material | EPR |
| Number of Cores | 4 Core + Earth |
| Sheath Colour | Black |
| Sheath Material | CSP Elastomer |
| Standards | AS/NZS 1125 AS/NZS 3191 AS/NZS 5000-1 AS/NZS 3008.1.1:2009 |
| Temperature | 90 deg C |
| Tensile Strength | 15 Nm |
| Voltage | 0.6-1 kV |
