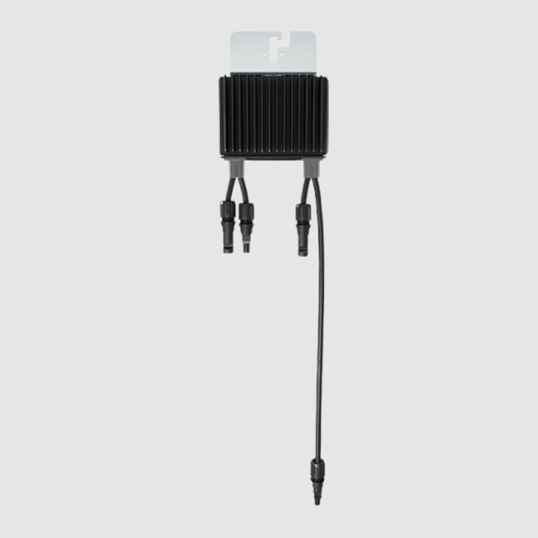

SolarEdge S-Series Power Optimizer Input Up to 1000W 2 in Series 125V 18A

$Solar_Edge\SolarEdge_S1000-1GM4MBT.jpg$

Description

Power Optimizer, 1000 Watt DC Input, 125 Volt DC DC Input, 12.5-105 Volt DC DC MPPT Voltage Range, 15 Amp AC Output, 0.995 Efficiency, 0.988 European Weighted Efficiency, MC4 Connection, IP68, -40 to 85 deg C

Key Specifications

SKU	SLRS1000-1GMXMBT
Brand	SolarEdge
Product Type	Power Optimizers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	High Efficiency 99.5% with panel level MPPT Supports High Power and Bifacial PV Panels and high string current for more power per string Designed to automatically reduce high DC voltage to touch-safe levels upon grid/inverter shutdown with SafeDC Includes SolarEdge Sense Connect Supports connection of two PV panels in series with easy cable management and fast installation times Panel Level System Monitoring enabling pinpointed fault detection and remote troubleshooting
Standard Pack Size	10
UNSPSC Class	26111600
UOM	EA
Vendor Product	S1000-1GMXMBT
AC Output Current	15 Amp
Connection Type	MC4
DC Input Power	1000 Watt
DC Input Voltage	125 Volt DC
DC MPPT Voltage Range	12.5-105 Volt DC
Depth	165 mm
Efficiency	0.995
Height	52 mm
IP Rating	IP68
European Weighted Efficiency	0.988
Operating Temperature	-40 to 85 deg C
Relative Humidity	0-100%
Width	129 mm
