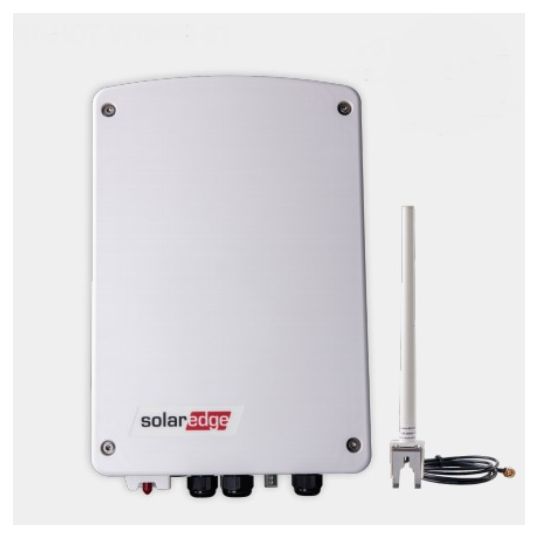

Solar Edge Smart Energy Hot Water 4.8kW

chevron-left

Description

chevron-down
Smart Energy Hot Water, 230 Volt, 21 Amp, 4.8 kW Power Consumption, 50 Hz, Terminal Block/1.5 mm/1.5 AWG Connector, Wall Mount, IP65, -10 to 50 deg C, 340 mm Width x 375 mm Height x 110 mm Depth

Key Specifications

chevron-down
SKU
SLRSMRT-HOT-WTR-48S1
Brand
SolarEdge

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Seamless integration with all SolarEdge inverters, and the monitoring platform
  • Adjusts power supplied to heater based on available PV power(up to 4.8 kW)
  • Built-in water tank power consumption meter
  • Simple wall mount installation with an IP65 protection rating
  • Wireless communication with the inverter
  • Suitable for powering purely resistive loads only
  • Optional temperature sensor for optimised heating
Standard Pack Size 1
UNSPSC Class 26111600
UOM EA
Vendor Product SMRT-HOT-WTR-48-S1
Connector System Terminal Block/1.5 sq-mm/1.5 AWG
Frequency 50 Hz
Dimensions 340 mm W x 375 mm H x 110 mm D
Current 21 Amp
IP Rating IP65
Mounting Method Wall
Product Type Smart Energy Hot Water
Temperature -10 to 50 deg C
Power Consumption 4.8 kW
Voltage 230 Volt
