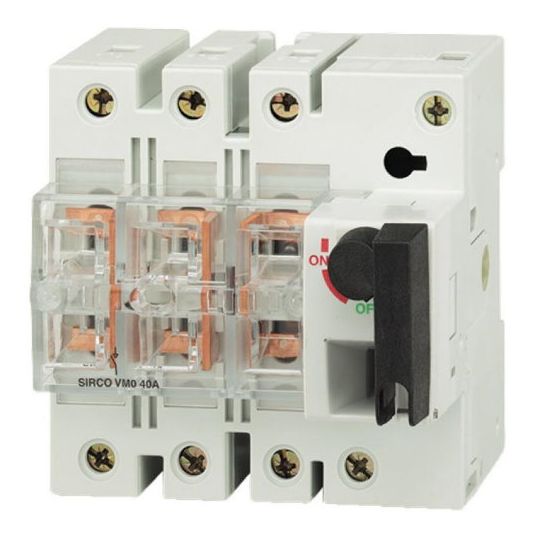

Socomec Load-Break Switch With Visible Contacts Front Operated 3P 32A AC21 25 kW AC23 Surface Mount IP65

Description

Load-Break Switch With Visible Contacts Front Operated, 400-690 Volt AC, 220 Volt DC, 32 Amp, AC21 Rating: 32 Amp, AC23 Rating: 32 Amp, 25 kW @ 690 Volt, 3 Pole, Cable Size: 2.5-16 mm, Tightening Torque: 2 Nm, IP65, Surface Mount, 98 mm Height, 96 mm Width, 112 mm Depth

Key Specifications

Barcode (EAN-13)	9321807196583
SKU	SOCVLB323P
Brand	Socomec
Range Name	SIRCO VM0
Product Type	Load-Break Switches

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Double break per pole offers high durability and short-circuit withstand Use of glass fibre reinforced polyester provides high mechanical and thermal resistance (does not include SLBM or VLBM modular series) Quick and easy to install thanks to good centre to centre distance and connection accessories including copper connecting links Wide range of accessories available which is flexible in adapting to various applications and reduces the cost of management and storage All Socomec load break switches are compatible with the ergonomic IP65 S-Type Handles which features interlocking (in the ON position), padlocking, UV and chemical agent resistive material and the choice of standard blue or red / yellow colour
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	VLB323P
AC23 Rating	32 Amp 25 kW @ 690 Volt
Cable Size	2.5-16 sq-mm
Current	32 Amp
Depth	112 mm
IP Rating	IP65
Number Of Poles	3 Pole
Height	98 mm
Tightening Torque	2 Nm
Voltage	400-690 Volt AC/220 Volt DC
Width	96 mm
