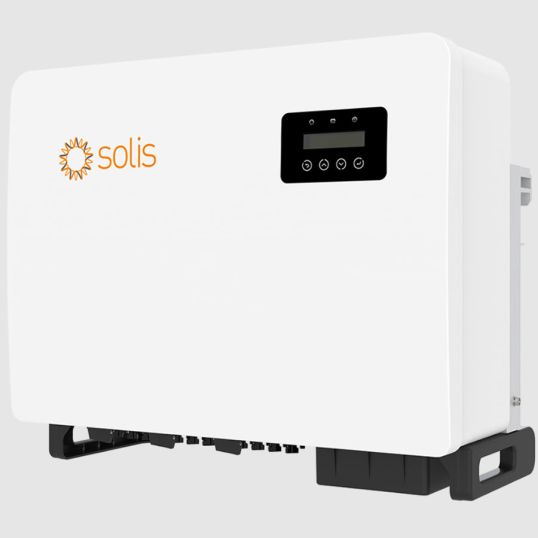

Solis S5 60kW PV Grid Tie Inverter - 6 MPPT 3 Ph Built-In DC

$Solis\Solis_S5-GC60K.jpg$

Description

Looking for something specific? Search with keywords to help filter your required specifications.

Features	Max. Efficiency 98.7% 5/6 MPPT Design, Supports Multiple Orientation System Design Night Time SVG Function Intelligent String Monitoring - Smart I-V Curve Scan IP66, C5 Anti-Corrosion Level, AFCI Protection - Proactively reduces fire risk String Current Up to 16A 10/12 String Inputs allow for 150%+ DC Oversizing DC Side Supports Y Connector
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	S5-GC60K
AC Max. Apparent Power	60 kVA
AC Output Current	100.3 Amp
AC Operating Frequency	50 Hz
AC Nominal Voltage	3/N/PE 230V/400V
AC Output Power	60 kW
Communication Port	RS485 Optional: Wi-Fi GPRS
Connection Type	MC4 Connector
Cooling Method	Intelligent Redudant Fan-Cooling
DC Input Power	79.8 kW
DC Max. Input Current	6x 32 Amp
DC Input Voltage	1100 Volt
DC Nominal Voltage	600 Volt
DC MPPT Voltage Range	180-1000 Volt
DC Start-up Voltage	195 Volt
DC Switch	Optional (PV2 Switch)
Depth	338 mm
Display Type	LCD Capacitive Touch Buttons
European Weighted Efficiency	98.30%
Height	578 mm
IP Rating	IP66
Efficiency	98.70%
Max. Operating Altitude	4000 Mtr
Number of MPPTs	6
Operating Temperature	-25 to 60 deg C
Phase	3 Phase
Power Factor	>0.99 (0.8 Leading-0.8 Lagging)
Relative Humidity	0-100%
Topology	Transformerless
Total Harmonic Distortion	<3%
Width	691 mm
