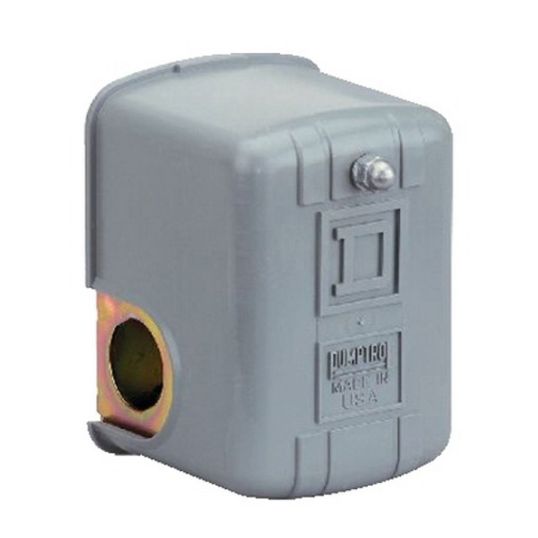

Schneider Square D Class 9013 Differential Pressure Switch 137.9-206.84 kPa 2NC DPST IP20 Water Pump

$Schneider\Schneider_9013FYG2J21B7PU2.jpg$

Description

Differential Pressure Switch, 2NC, DPST Configuration, 25-80 psi Adjustable, 137.9 to 206.84 kPa, +/-3% Accuracy, Diaphragm Actuator, Electromechanical Sensor, IP20, Polypropylene Housing,-36 to 125 deg C, 71.12mm Height, 70.61mm Width, 95.5mm Depth, Water Pump

Key Specifications

SKU	SQD9013FYG2J21B7PU2
Brand	Schneider
Range Name	Square D Class 9013
Product Type	Pressure & Vacuum Switches

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	9013FYG2J21B7PU2-NLA
Accuracy	+/-3%
Actuator Type	Diaphragm
Contact Configuration	2 Normally Closed/DPST
Depth	95.5mm
Differential Pressure Range	137.9 to 206.84 kPa
Housing Material	Polypropylene
Height	71.12mm
IP Rating	IP20
Operating Pressure Range	25-80 psi Adjustable
Please Note	Water Pump
Sensor Type	Electromechanical
Temperature	-36 to 125 deg C
Width	70.61mm
