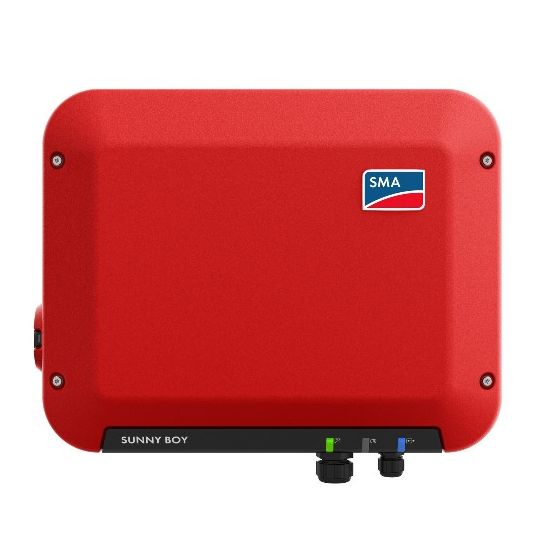

SMA Sunny Boy Solar Inverter 1 MPPT Single Phase 1.5kW PV String Grid Feed-In

chevron-left

Description

chevron-down
Solar Inverter, 1 Phase, 3000 Watt Input, 600 Volt DC Input, 360 Volt DC Nominal, 160-500 Volt DC MPPT Voltage Range, 80 Volt DC Start-up, 10 Amp Max. Input, 1 MPPTs, 1.5 kW Output, 1500 VA Max. Apparent, 180-280 Volt AC Operating, 220-240 Volt AC Nominal, 50 Hz, 7 Amp Output, 1, Adjustable-0.8 Overexcited to 0.8 Underexcited Power Factor, 97.2% Efficiency, Transformerless, WLAN/Ethernet, Smartphone, Tablet, Laptop Display, Convection Cooling, < 25 dB, SUNCLIX/Connector, IP65, 4K4H Climate Category, -40 to 60 deg C, 100% Relative Humidity, 460 mm Width x 357 mm Height x 122 mm Depth, 9.2 kg

Key Specifications

chevron-down
SKU
SSTSB1.5-1VL-40
Brand
SMA
Range Name
Sunny Boy
Product Type
Inverters

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • One-person installation due to low weight of 9.2 kg
  • Compact design means minimum space requirements
  • 100% plug and play installation
  • Free online monitoring via sunny places
  • Automated service thanks to SMA smart connected
  • Use of surplus energy through dynamic active power limitation
  • Yield increase without installation effort due to integrated shade management SMA ShadeFix
  • Wide input voltage range
  • Intelligent energy management and storage solutions can be added anytime
  • Can be combined with TS4-R components for module optimization
Standard Pack Size 1
UNSPSC Class 26111600
UOM EA
Vendor Product SB1.5-1VL-40
AC Max. Apparent Power 1500 VA
AC Nominal Voltage 220-240 Volt
AC Operating Frequency 50 Hz
AC Operating Voltage 180-280 Volt
AC Output Current 7 Amp
AC Output Power 1.5 kW
Communication Port WLAN/Ethernet
Climate Category 4K4H
Connection Type SUNCLIX/Connector
Cooling Method Convection
DC Input Power 1600 Watt
DC Input Voltage 600 Volt
DC Max. Input Current 10 Amp
DC MPPT Voltage Range 160-500 Volt
DC Nominal Voltage 360 Volt
DC Start-up Voltage 80 Volt
Depth 122 mm
Display Type Smartphone/Tablet/Laptop
Efficiency 97.20%
European Weighted Efficiency 96.10%
IP Rating IP65
Height 357 mm
Noise Level < 25 dB
Number of MPPTs 1
Operating Temperature -40 to 60 deg C
Phase 1 Phase
Power Factor 1/Adjustable -0.8 Overexcited to 0.8 Underexcited
Relative Humidity 100%
Topology Transformerless
Width 460 mm
