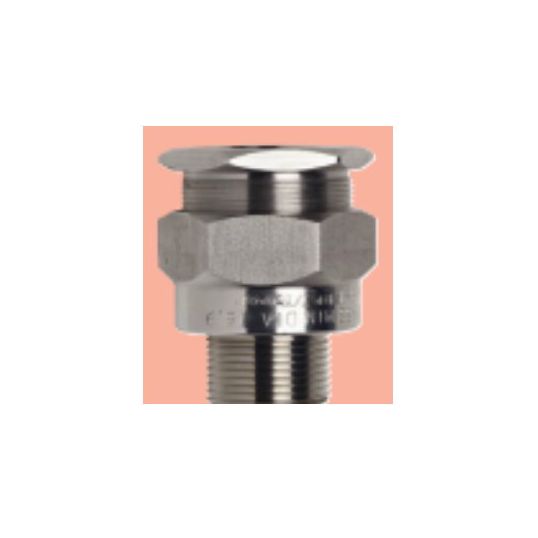

Surefit Hazardous Area Cable Gland Unarmoured 35.5-40.5mm M50 x 1.5 IP66/68

Description

Hazardous Area Cable Gland, Unarmoured, M50 x 1.5, 21 mm Thread Length, 1.5 mm Pitch, 35.5 mm Min. Sheath OD, 40.5 mm Max. Sheath OD, 68.2 mm Width Across Flats, 73.9 mm Width Across Corners, For: Unarmoured Cable, Exdb I/IIC, Exeb I/IIC, Ex ta IIIC, 36.2 mm Protrusion Length, IP66/68, Neoprene Seal, Brass Body, Nickel Plated Finish

Key Specifications

Barcode (EAN-13)	9323952341177
SKU	SURGWPM5A
Brand	Surefit
Range Name	Type GWPM
Product Type	Cable Glands Hazardous Area

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	For explosion protected, unarmoured cable applications Nickel plated brass cable glands for use with circular unarmoured cables to secure the cable and to provide an explosion protected, weatherproof and dust excluding ignition proof entry into panels or enclosures that meet these requirements Suitable for use in machine and equipment applications where an explosion protected, unarmoured, weatherproof gland type termination is required
Standard Pack Size	2
UNSPSC Class	39121400
UOM	EA
Vendor Product	GWPM5A
Body Material	Brass
Finish	Nickel Plated
For Use With	Unarmoured Cable
Hazardous Area Rating	Exdb I/IIC Exeb I/IIC Ex ta IIIC
IP Rating	IP66/68
Min. Sheath OD	35.5 mm
Max. Sheath OD	40.5 mm
Protrusion Length	36.2 mm
Seal Material	Neoprene
Thread Length	21 mm
Thread Size	M50 x 1.5
Thread Pitch	1.5 mm
Width Across Corners	73.9 mm
Width Across Flats	68.2 mm
