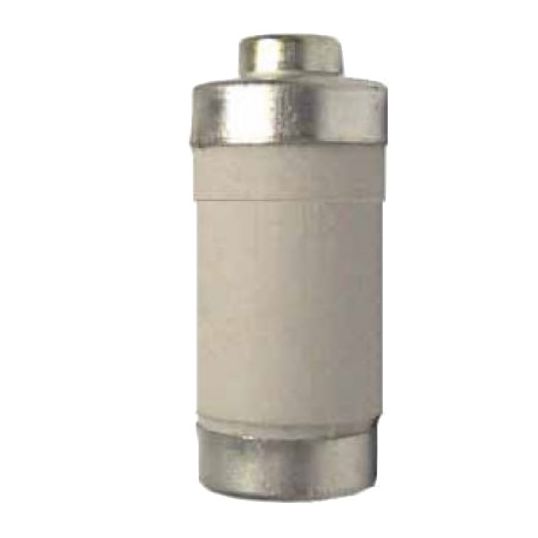

Swe-Check European Bottle Fuse Link Neozed Fast Acting 80A 400VAC 50kA 250VDC 8kA 22.5x43mm
Description
European Bottle Fuse Link Neozed Fast Acting, AC Voltage: 400 VAC, DC Voltage: 250 VDC, 80 Amp, AC Interrupt Capacity: 50 kA, DC Interrupt Capacity: 8 kA, Class gG/gL, Silver, 21.4mm Cap Diameter, 22.5mm Diameter x 43mm Length, DIN Size D03
Key Specifications
| SKU |
SWE-NEO-NB080
|
|---|---|
| Brand |
Swe-Check
|
| Product Type |
Fuse Links
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | SWE-NEO-NB080 |
| AC Interrupt Capacity | 50 kA |
| AC Voltage | 400 Volt AC |
| Cap Diameter | 21.4 mm |
| Colour | Silver |
| Current | 80 Amp |
| DC Interrupt Capacity | 8 kA |
| DC Voltage | 250 Volt DC |
| Dimensions | 22.5 mm Diameter x 43 mm Length |
| Standard Reference | DIN Size D03 |
| Utilisation Category | Class gG/gL |
