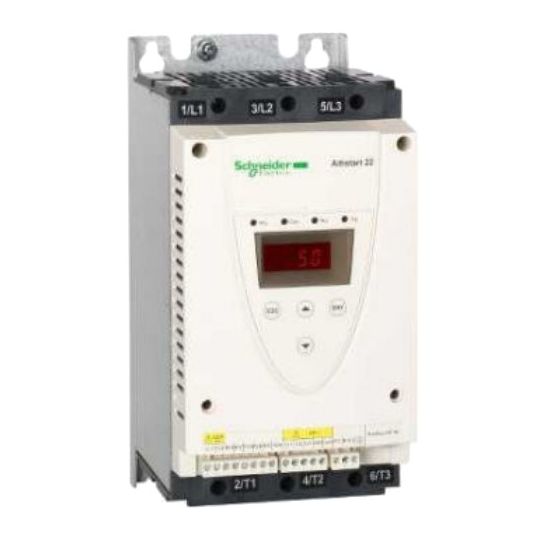

Schneider Motor Starter Soft Start Soft Stop 3 Phase 7.5kW 415V
Description
Motor Starter Soft Start Soft Stop 3 Phase, 230-440 Volt, 14.8 Amp, 50/60 Hz, 7.5 kW, 230 Volt, 3 Phase, IP20, Start With Torque Control, -10 to 40 deg C/40 to 60 deg C, 265 mm Height, 130 mm Width, 169 mm Depth
Key Specifications
| Barcode (EAN-13) |
3606480167188
|
|---|---|
| SKU |
TEEATS22D17Q
|
| Brand |
Schneider
|
| Range Name |
Altistart 22
|
| Product Type |
Motor Starters Soft Start
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | ATS22D17Q |
| Current | 14.8 Amp |
| Depth | 169mm |
| Frequency | 50/60 Hz |
| Height | 265mm |
| IP Rating | IP20 |
| Phase | 3 Phase |
| Starting Modes | Start With Torque Control |
| Supply Voltage | 230-440 Volt |
| Temperature | -10 to 40 deg C/40 to 60 deg C |
| Wattage | 7.5 kW |
| Width | 130mm |
