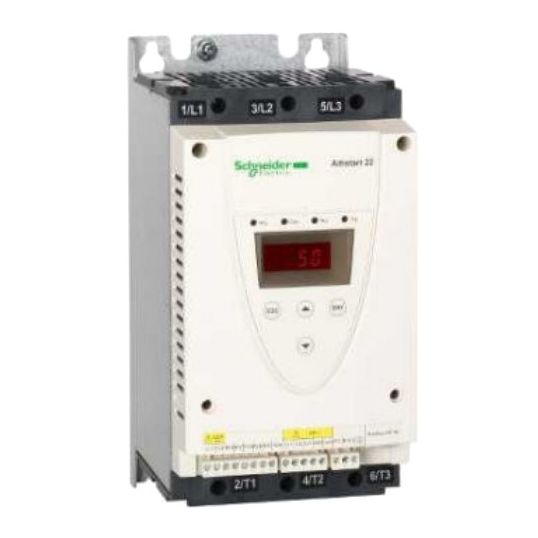

Schneider Motor Starter Soft Start Soft Stop 3 Phase 37kW 415V
Description
Motor Starter Soft Start Soft Stop 3 Phase, 230-440 Volt, 69 Amp, 50/60 Hz, 37 kW, 18.5 kW @ 230 Volt, 37 kW @ 400/440 Volt, 230 Volt, 3 Phase, IP20, Start With Torque Control, -10 to 40 deg C/40 to 60 deg C, 295 mm Height, 145 mm Width, 207 mm Depth
Key Specifications
| Barcode (EAN-13) |
3606480167225
|
|---|---|
| SKU |
TEEATS22D75Q
|
| Brand |
Schneider
|
| Range Name |
Altistart 22
|
| Product Type |
Motor Starters Soft Start
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | ATS22D75Q |
| Current | 69 Amp |
| Depth | 207mm |
| Frequency | 50/60 Hz |
| Height | 295mm |
| IP Rating | IP20 |
| Motor Power | 18.5 kW at 230 Volt/37 kW at 400-440 Volt |
| Phase | 3 Phase |
| Starting Modes | Start With Torque Control |
| Supply Voltage | 230-440 Volt |
| Temperature | -10 to 40 deg C/40 to 60 deg C |
| Wattage | 37 kW |
| Width | 145mm |
