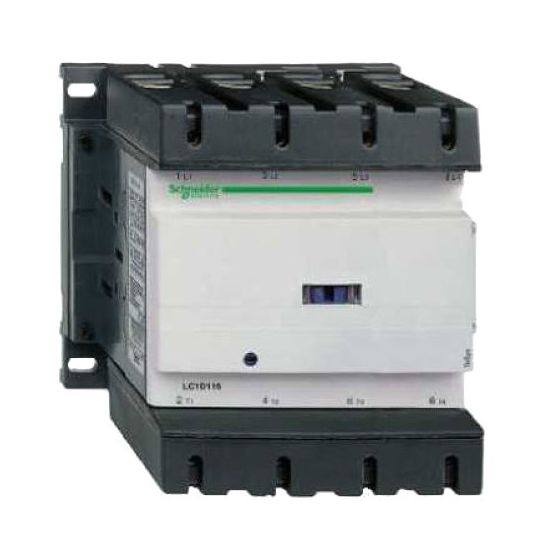

Schneider Contactor General Purpose AC Operated 4 Pole 115A AC3 200A AC1 110V 4NO Main DIN Rail/Plate Mount

Description

Contactor General Purpose AC Operated, 110 Volt AC, AC3 Rating (Amps): 115 at 440 Volt AC, AC1 Rating (Amps): 200 at 440 Volt AC, 1000 Volt AC, 460 Volt DC, 4 NO Main, 4 Pole, Operating Time: 6-20 ms Closing, 20-50 ms Opening, Lug Ring, DIN Rail/Plate Mount, IP20, -40 to 60 deg C, 158 mm Height, 155 mm Width, 115 mm Depth

Key Specifications

Barcode (EAN-13)	3389110882339
SKU	TEELC1-D1150046F7
Brand	Schneider
Range Name	TeSys Model D
Product Type	Contactors General

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	LC1D1150046F7
AC1 Rating (Amps)	200 Amp AC1
AC3 Rating (Amps)	115 Amp AC3
Contact Configuration	4 Normally Opened
Contact Voltage	1000 Volt AC/460 Volt DC
Depth	115 mm
Height	158 mm
IP Rating	IP20
Mounting Method	DIN Rail/Plate
Number Of Poles	4 Pole
Operating Coil Voltage	110 Volt AC
Operating Time	6-20 ms Closing/20-50 ms Opening
Temperature	-40 to 60 deg C
Terminal Connection	Lug Ring
Width	155 mm
