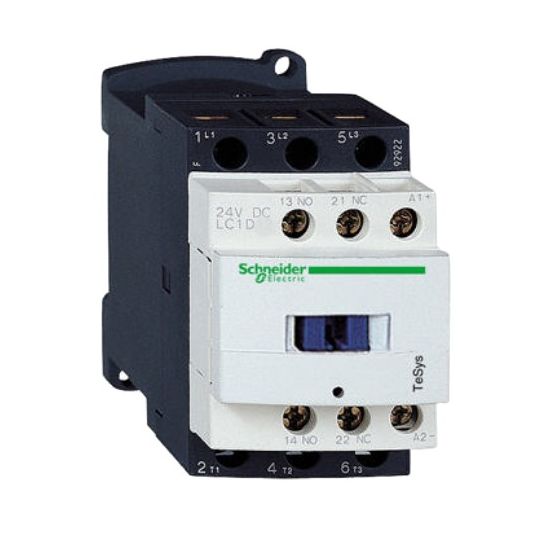

Schneider Contactor General Purpose AC Operated 3 Pole 11kW 25A AC3 40A AC1 380V 1NO-1NC Auxilary DIN Rail/Plate Mount

chevron-left

Description

chevron-down
Contactor General Purpose AC Operated, 380 Volt AC, AC3 Rating (kW): 11, AC3 Rating (Amps): 25 at 440 Volt AC, AC1 Rating (Amps): 40 at 440 Volt AC, 690 Volt AC, 300 Volt DC, 1NO-1NC Auxiliary, 3 Pole, Operating Time: 12-22 ms Closing, 4-19 ms Opening, Screw Clamp, DIN Rail/Plate Mount, IP20, -40 to 60 deg C, 85 mm Height, 45 mm Width, 92 mm Depth

Key Specifications

chevron-down
Barcode (EAN-13)
3389110350067
SKU
TEELC1-D25Q7
Brand
Schneider
Range Name
TeSys Model D
Product Type
Contactors General

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 1
UNSPSC Class 39121500
UOM EA
Vendor Product LC1D25Q7
AC1 Rating (Amps) 40 Amp AC1
AC3 Rating (Amps) 25 Amp AC3
AC3 Rating (kW) 15 kW
Contact Voltage 690 Volt AC/300 Volt DC
Contact Configuration 1 Normally Opened & 1 Normally Closed Aux
Depth 92 mm
Height 85 mm
IP Rating IP20
Mounting Method DIN Rail/Plate
Number Of Poles 3 Pole
Operating Coil Voltage 380 Volt AC
Operating Time 12-22 ms Closing/4-19 ms Opening
Temperature -40 to 60 deg C
Terminal Connection Screw Clamp
Width 45 mm
