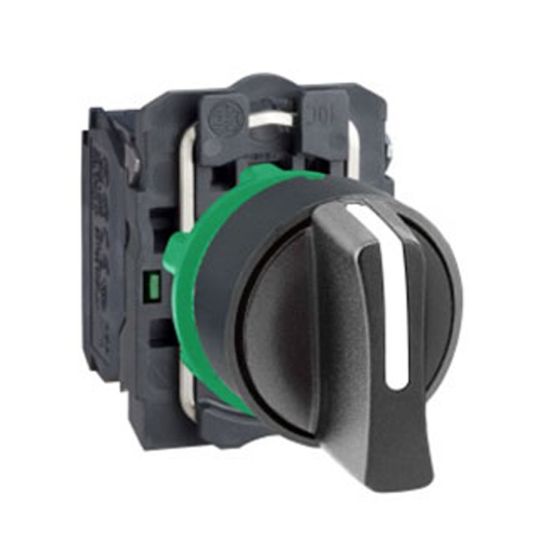

Schneider Harmony Selector Switch 22mm 3 Position Maintained 2NO Marked Hand Off Auto Black
Description
Selector Switch, 125-230 Volt AC, 6 Amp AC15, 10 Amp, 2 Normally Opened Configuration, Slow Break Contact Mode, Stay Put Operator, Hand Off Auto, Screw Clamp/Plug-in/Printed Circuit Board/Faston Connection, IP69K, Black Handle/Dark Grey Bezel, -40 to 70 deg C, 42 mm Height, 30 mm Width, 70 mm Depth
Key Specifications
| SKU |
TEEMXB5AD33
|
|---|---|
| Brand |
Schneider
|
| Product Type |
Selector Switches
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | MXB5AD33 |
| Colour | Black Handle/Dark Grey Bezel |
| Connection Type | Screw Clamp/Plug-in/Printed Circuit Board/Faston |
| Contact Mode | Slow Break |
| Contact Configuration | 2 Normally Opened |
| Depth | 70 mm |
| Height | 42 mm |
| Interrupt Rating | 10 Amp |
| IP Rating | IP69K |
| Legend | Hand Off Auto |
| Operator Type | Stay Put |
| Temperature | -40 to 70 deg C |
| Width | 30 mm |
| Voltage | 125-230 Volt AC |
