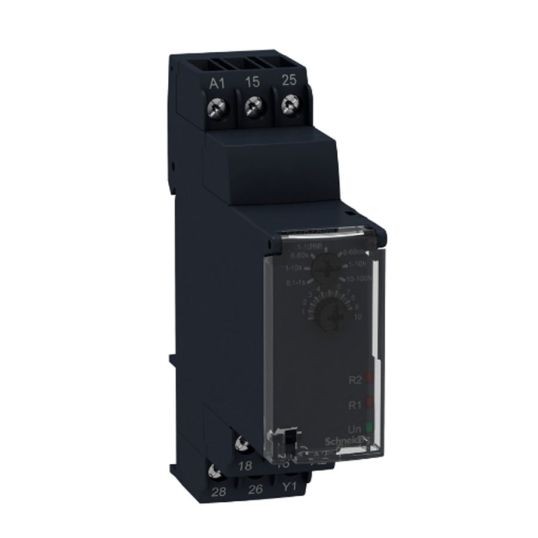

Schneider Zelio Modular Timing Relay 8A 0.1Sec-100hr 2CO Power on Delay 24-240VAC/DC

Description

Modular Timing Relay, 24-240 Volt AC/DC, 8 Amp, 0.7 Watt at 24 Volt DC, Contact Configuration: 2CO, Resistance: 100 MOhm at 500 Volt DC, Timing Function: On Delay, Timing Range: 0.1 sec 100 hrs, Control Type: Rotary Knob Front Panel, 10000000 Cycles, Screw Terminal, 35 mm DIN Rail Mount, IP40 (Housing), IP20 (Terminal Block), IP40 (Front Face), -20 to 60 deg C, 90 mm Height, 22.9 mm Width, 80 mm Depth

Key Specifications

Barcode (EAN-13)	3606480676567
SKU	TEERE22R2AMU
Brand	Schneider
Product Type	Timing Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	RE22R2AMU
Control Type	Rotary Knob Front Panel
Contact Configuration	2 Changeover
Depth	80 mm
Current	8 Amp
Height	90 mm
IP Rating	IP40 Housing/IP20 Terminals
Operating Cycles	10000000 Cycles
Mounting Method	DIN Rail
Power Rating	0.7 Watt at 24 Volt DC
Temperature	-20 to 60 deg C
Terminal Connection	Screw
Timing Function	On Delay
Timing Range	0.1 Seconds-100 Hours
Voltage	24-240 Volt AC/DC
Width	22.9 mm
