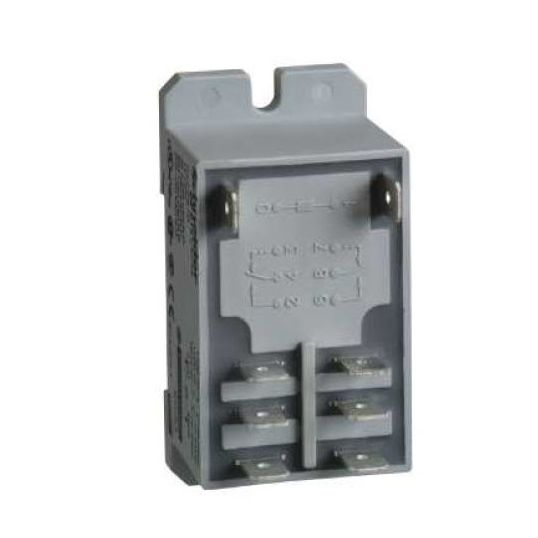

Schneider Power Relay DIN Rail Mounting 2P 2CO 30A 12VDC Flat
Description
Power Relay DIN Rail Mounting, 12 Volt DC, 30 Amp Flat, 2CO, 86 Ohm, Operating Time: 25 ms, <=1200 Cycles/hr Under Load/<=18000 Cycles/hr No-Load, IP40, DIN Rail Mount/Panel, Plug-In, Silver Tin Oxide, -40 to 55 deg C, 68.5 mm Height, 33.7 mm Width, 39.2 mm Depth
Key Specifications
| Barcode (EAN-13) |
3389119401623
|
|---|---|
| SKU |
TEERPF-2BJD
|
| Brand |
Schneider
|
| Range Name |
Zelio RPF
|
| Product Type |
Power Relays
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39122300 |
| UOM | EA |
| Vendor Product | RPF2BJD |
| Contact Configuration | 2 Changeover |
| Depth | 39.2 mm |
| Height | 68.5 mm |
| IP Rating | IP40 |
| Current | 30 Amp |
| Mounting Method | Din Rail/Panel/Plug-In |
| Contact Material | Silver Tin Oxide |
| Operating Coil Voltage | 12 Volt DC |
| Operating Cycles | <=1200 Cycles/hr Under Load/<=18000 Cycles/hr No-Load |
| Operating Time | 25 ms |
| Resistance | 86 Ohm |
| Temperature | -40 to 55 deg C |
| Width | 33.7 mm |
