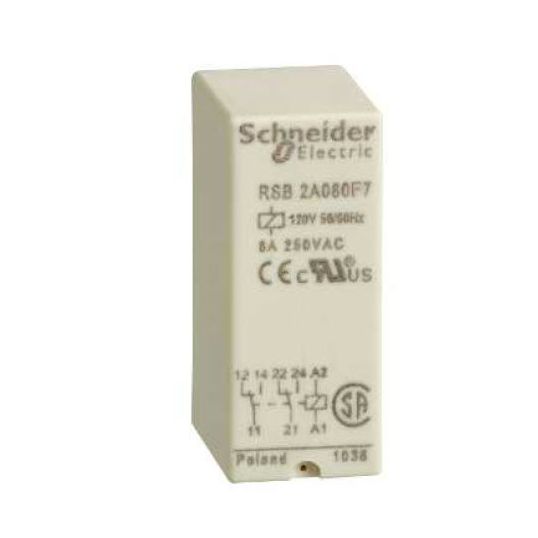

Schneider Interface Relay Plug-in 2CO 8A 120V 8 Pin Flat/PCB

$Schneider\Schneider_RSB2A080F7.jpg$

Description

Interface Relay Plug-in, 96-180 Volt AC, 120 Volt AC, 8 Amp, 8 Pin Flat/PCB, 2CO, 8360 Ohm, Operating Time: 20 ms, <=600 Cycles/hr Under Load, <=18000 Cycles/hr No-Load, IP40, Plug-In Mount, Silver Alloy, -40 to 70 deg C, 29 mm Height, 12.5 mm Width, 15.7 mm Depth

Key Specifications

Barcode (EAN-13)	3389110256260
SKU	TEERSB2A080F7
Brand	Schneider
Product Type	Interface Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Without LED, test switch
Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	RSB2A080F7
Contact Configuration	2 Changeover
Contact Material	Silver Alloy
Depth	15.7 mm
Height	29 mm
Current	8 Amp
Mounting Method	Plug In
Operating Coil Voltage	120 Volt AC
Operating Cycles	<=600 Cycles/hr Under Load, <=18000 Cycles/hr No-Load
Operating Time	20 ms
IP Rating	IP40
Pin Configuration	8 Pin Flat/PCB
Resistance	8360 Ohm
Temperature	-40 to 70 deg C
Width	12.5 mm
Voltage	96-180 Volt AC
