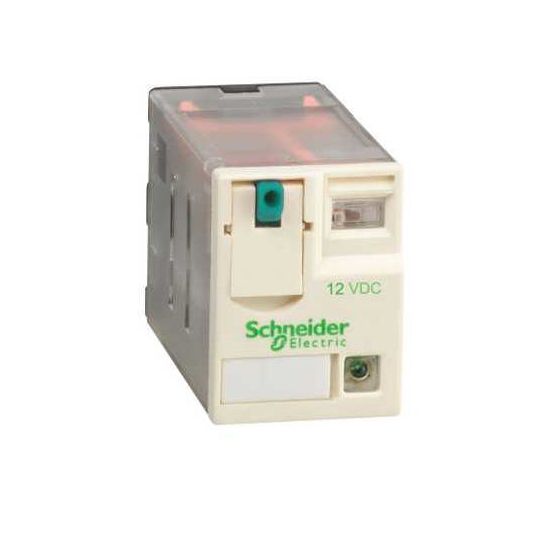

Schneider Miniature General Purpose Relay Plug-In Mount 4P 4CO 6A 12VDC 14 Pin Flat

$Schneider\Schneider_Zelio_RXM_2_12VDC.jpg$

Description

Miniature General Purpose Relay, 9.6-132 Volt DC, 12 Volt DC Coil Voltage, 6 Amp AC15, 14 Pin Flat, 4 Changeover Configuration, 160 Ohm, 20 ms Operating Time, <=1200 Cycles/hrs Under Load/<=18000 Cycles/hrs No-Load, Plug-In Mounting, IP40, AgNi Contact, -40 to 55 deg C, 27 mm Height, 21 mmm Width, 40 mm Depth

Key Specifications

Barcode (EAN-13)	3389119403870
SKU	TEERXM-4AB2JD
Brand	Schneider
Range Name	Zelio RXM
Product Type	Power Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	RXM4AB2JD
Contact Material	AgNi
Contact Configuration	4 Changeover
Height	27 mm
IP Rating	IP40
Depth	40 mm
Current	6 Amp AC15
Operating Coil Voltage	12 Volt DC
Mounting Method	Plug-In
Operating Cycles	<=1200 Cycles/hrs Under Load/<=18000 Cycles/hrs No-Load
Operating Time	20 ms
Pin Configuration	14 Pin Flat
Resistance	160 Ohm
Voltage	9.6-132 Volt DC
Temperature	-40 to 55 deg C
Width	21 mmm
