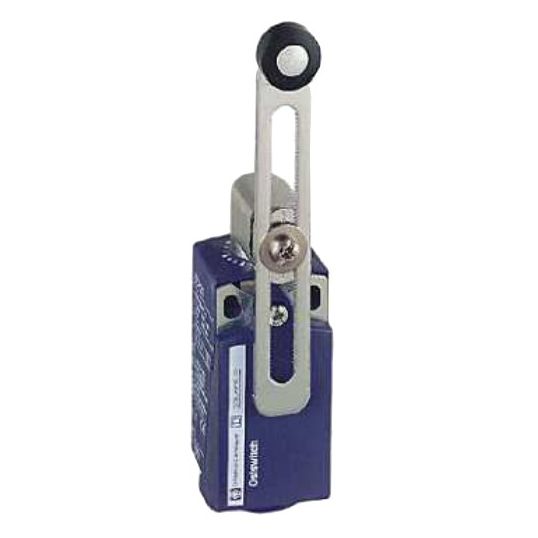

Schneider Limit Switch Assembly European Style 1NO-1NC Snap Action Roller Lever Variable IP66/67
Description
Limit Switch Assembly European Style, 240 Volt AC, 250 Volt DC, 10 Amp, Roller Lever Variable Actuator, 1NO+1NC, Snap Action, 5000000 Electrical, 10000000 Mechanical Cycles, IP66, IP67, Plastic, Zamak, -25 to 70 deg C, 65 mm Height, 31 mm Width, 30 mm Depth
Key Specifications
| Barcode (EAN-13) |
3389110201901
|
|---|---|
| SKU |
TEEXCKP2145P16
|
| Brand |
Schneider
|
| Range Name |
OsiSense XCK P
|
| Product Type |
Limit Switches
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | XCKP2145P16-NLA |
| Actuator Type | Roller Lever Variable |
| Contact Configuration | 1NO+1NC Snap Action |
| Current | 10 Amp |
| Depth | 30 mm |
| Height | 65 mm |
| IP Rating | IP66/67 |
| Operating Cycles | 5000000 Electrical/10000000 Mechanical Cycles |
| Temperature | -25 to 70 deg C |
| Voltage | 240 Volt AC/250 Volt DC |
| Width | 31 mm |
