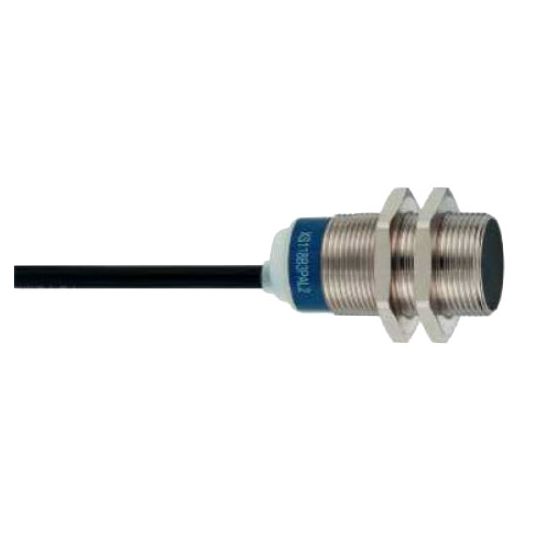

Schneider Proximity Switch Inductive Sensing Shielded Flush M18 24-240VAC/DC Discrete 1NO 2m L
Description
Proximity Switch Inductive Sensing Shielded Flush, Cylindrical, Sensing Range: >4 to 8 mm, Response Time: 0.5 ms, Discrete, 24-240 Volt AC/DC, 50/60 Hz, 1NO, LED, 2 mtr Cable, Flush Mount, IP68, IP69K, Metal, -25 to 70 deg C, Length: 62 mm
Key Specifications
| Barcode (EAN-13) |
3389110147285
|
|---|---|
| SKU |
TEEXS618B1MAL2
|
| Brand |
Schneider
|
| Range Name |
OsiSense
|
| Product Type |
Proximity Sensors
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | XS618B1MAL2-NLA |
| Cable Size | 2 mtr |
| Contact Configuration | 1 Normally Opened |
| IP Rating | IP68/69 |
| Light Source | LED |
| Mounting Method | Flush |
| Material | Metal |
| Operating Voltage | 24-240 Volt AC/DC |
| Output Function | Discrete |
| Response Time | 0.5 ms |
| Sensing Range | >4 to 8 mm |
| Shape | Cylindrical |
| Temperature | -25 to 70 deg C |
