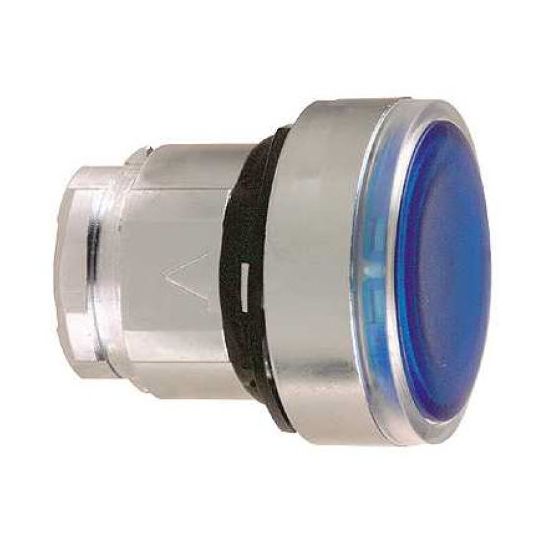

Schneider Pushbutton Actuator Only Flush Head Metal Body k Illuminated Latching Blue 22mm Panel
Description
Pushbutton Actuator Only Flush Head Metal Body, Size: 22 mm, Illuminated, Unmarked, Latching, Flush Head, Push-Push Reset, Tightening Torque: 0.6 N/m, IP66, IP67, IP69, IP69K, Screw Terminal Clamp/Plug-In/Printed Circuit Board/Faston, Mounting Diameter: 22 mm, Panel Mount, Metal Housing, Chromium Plated Metal Bezel, Blue, -40 to 70 deg C, 29 mm Height, 29 mm Width, 30 mm Depth
Key Specifications
| Barcode (EAN-13) |
3389110122732
|
|---|---|
| SKU |
TEEZB4-BH063
|
| Brand |
Schneider
|
| Range Name |
Harmony Style 4
|
| Product Type |
P/B Actuators Flush
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | ZB4BH063 |
| Colour | Blue |
| Depth | 30 mm |
| Head Type | Flush |
| Height | 29 mm |
| IP Rating | IP66/67/69/69K |
| Mounting Diameter | 22 mm |
| Mounting Method | Panel |
| Operator Profile | Unmarked |
| Operator Action | Illuminated Latching Action |
| Reset Type | Push-Push |
| Temperature | -40 to 70 deg C |
| Size | 22 mm |
| Tightening Torque | 0.6 N/m |
| Terminal Connection | Screw Clamp/Plug-In/Printed Circuit Board/Faston |
| Width | 29 mm |
