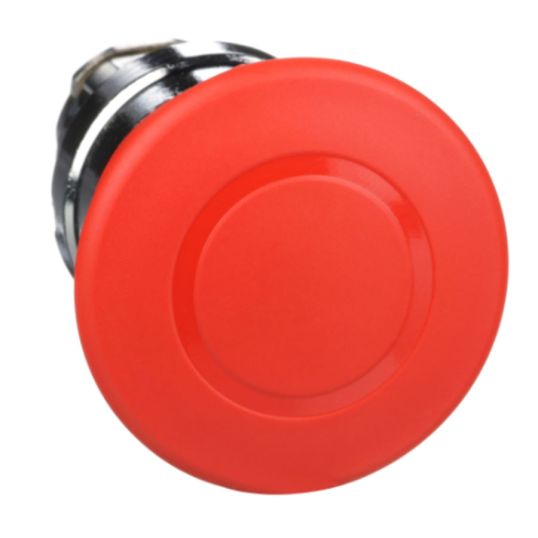

Telemecanique Emergency Stop Actuator Only 40mm Head Metal Body k Push-Pull Red 22mm Panel Mount
Description
Emergency Stop Actuator, Non-Illuminated Trigger Latching Action Operator Action, Unmarked Operator Profile, Standard Head, Push-Pull Reset Type, Screw Clamp/Plug-in/Printed Circuit Board/Faston Terminal, 0.6 Nm Tightening Torque, Panel Mounting, 22 mm Mounting Diameter, IP66/67/69/69K, Chromium Plated Metal Bezel, Red, -40 to 70 deg C, 22 mm, 40 mm Height, 40 mm Width, 56 mm Depth
Key Specifications
| Barcode (EAN-13) |
3389110892376
|
|---|---|
| SKU |
TEEZB4-BT84
|
| Brand |
Telemecanique
|
| Product Type |
P/B Actuators Emergency Stop
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | ZB4BT84 |
| Bezel Material | Chromium Plated Metal |
| Colour | Red |
| Depth | 56 mm |
| Height | 40 mm |
| Head Type | Standard |
| Mounting Diameter | 22 mm |
| IP Rating | IP66/67/69/69K |
| Mounting Method | Panel |
| Operator Action | Non-Illuminated Trigger Latching Action |
| Operator Profile | Unmarked |
| Reset Type | Push-Pull |
| Size | 22 mm |
| Terminal Connection | Screw Clamp/Plug-In/Printed Circuit Board/Faston |
| Temperature | -40 to 70 deg C |
| Tightening Torque | 0.6 Nm |
| Width | 40 mm |
