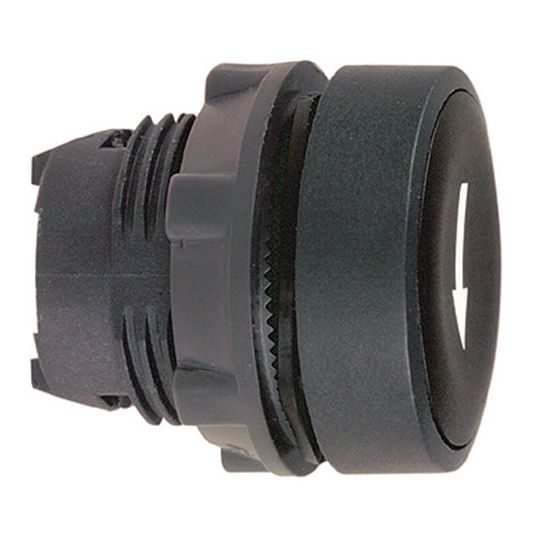

Schneider Pushbutton Actuator Only Flush Head Plastic Body k Non Illuminated Momentary Black 22mm Panel

Description

Pushbutton Actuator Flush Head, Non-Illuminated Momentary Action Operator Action, Labelled Down Arrow in White Operator Profile, Standard Head, Spring Return Reset Type, Screw Clamp/Plug-in/Printed Circuit Board/Faston/Plug-in/Printed Circuit Board/Faston Terminal, 0.6 Nm Tightening Torque, Panel Mounting, 22 mm Mounting Diameter, IP66/67/69/69K, Dark Grey Plastic Bezel, Black, -40 to 70 deg C, 22 mm, 29 mm Height, 29 mm Width, 28 mm Depth

Key Specifications

Barcode (EAN-13)	3389110134612
SKU	TEEZB5-AA335
Brand	Schneider
Range Name	Harmony Style 5
Product Type	P/B Actuators Flush

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	ZB5AA335
Bezel Material	Dark Grey Plastic
Colour	Black
Depth	28 mm
Head Type	Standard
Height	29 mm
Mounting Diameter	22 mm
IP Rating	IP66/67/69/69K
Mounting Method	Panel
Operator Action	Non-Illuminated Momentary Action
Operator Profile	Labelled Down Arrow in White
Reset Type	Spring Return
Size	22 mm
Temperature	-40 to 70 deg C
Terminal Connection	Screw Clamp/Plug-in/Printed Circuit Board/Faston/Plug-in/Printed Circuit Board/Faston
Tightening Torque	0.6 Nm
Width	29 mm
