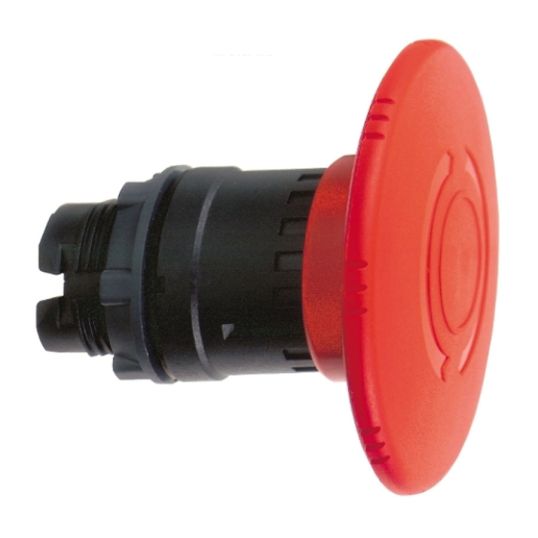

Telemecanique Pushbutton Actuator Only 60mm Mushroom Head Plastic Body k Non Illuminated Trigger Latching 1 NO 22mm

Description

Pushbutton Actuator Only 60mm Mushroom Head Plastic Body, Size: 22 mm, 1NO, Non-Illuminated, Unmarked, Trigger Latching, Standard Mushroom Head, Turn to Release, Tightening Torque: 0.6 N/m, IP66, IP67, IP69, IP69K, Screw Terminal Clamp/Plug-In/Printed Circuit Board/Faston, Mounting Diameter: 22 mm, Panel Mount, Plastic Housing, Plastic Bezel, Red, -40 to 70 deg C, 60 mm Height, 60 mm Width, 57 mm Depth

Key Specifications

Barcode (EAN-13)	3389118187801
SKU	TEEZB5-AS864
Brand	Telemecanique
Product Type	P/B Actuators Mushroom

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	ZB5AS864
Contact Configuration	1 Normally Opened
Colour	Red
Depth	57 mm
Head Type	Mushroom
Height	60 mm
Mounting Diameter	22 mm
IP Rating	IP66/67/69/69K
Mounting Method	Panel
Operator Action	Non-Illuminated Trigger Latching Action
Operator Profile	Unmarked
Reset Type	Twist to Release
Size	22 mm
Temperature	-40 to 70 deg C
Terminal Connection	Screw Clamp/Plug-In/Printed Circuit Board/Faston
Tightening Torque	0.6 N/m
Width	60 mm
