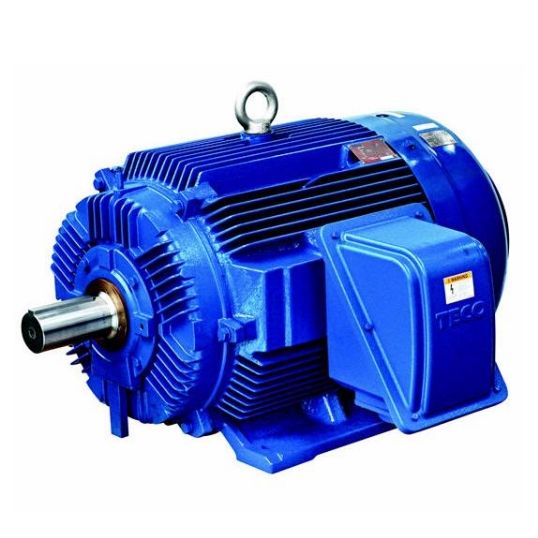

Teco Electric Motor Premium High Efficiency Squirrel Cage Induction 6P 5.5kW 3Ph 415V Shaft 38mm D132M Frame Foot Mount

Description

Electric Motor Premium Severe Duty High Efficiency Squirrel Cage Induction, 380/415 Volt AC, 11.5 Amp, 5.5 kW, 50 Hz, 3 Phase, 970 rpm, 6 Pole, IP66, Frame: D132M, Shaft Size: 38 mm, Bi-Directional Rotation, Duty Cycle: S1, Service Factor: 1/1.15 p.u at Class B/F, Ball Bearing, Torque: 54.1 N/m, Foot Mount, Insulation Class: Class F, ?80 deg C, Cast Iron, Blue, 492 mm Length x 310 mm Height

Key Specifications

SKU	TEO003/0005D6S
Brand	Teco
Range Name	Max E3 Premium
Product Type	Motors Premium HE

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	True IP66 with porous drain plugs Class F insulation system Superior inverter rated insulation Precision and rugged cast iron construction Typical temperature rise less than Class E 1.15 service factor at 40 deg C ambient Suitable for 55 deg C ambient at rated output TECO renowned grease relief system Thermistors for frames D160 and larger IECEX Ex e, Ex nA ready to order
Standard Pack Size	1
UNSPSC Class	26101100
UOM	EA
Vendor Product	003/0005D6S
Colour	Blue
Current	11.5 Amp
Bearing Type	Anti Fiction Ball
Frame	Size D132M
Height	310 mm
Frequency	50 Hz
Insulation Class	Class F
IP Rating	IP66
Horsepower	5.5 kW
Mounting Method	Foot
Material	Cast Iron
Number Of Poles	6 Pole
Phase	3 Phase
Rotation	Bi Directional
Service Factor	1/1.15 p.u at Class B/F
Shaft Size	38 mm
Speed	970 rpm
Temperature	?80 deg C
Voltage	380-415 Volt AC
Torque Rating	54.1 N/m
