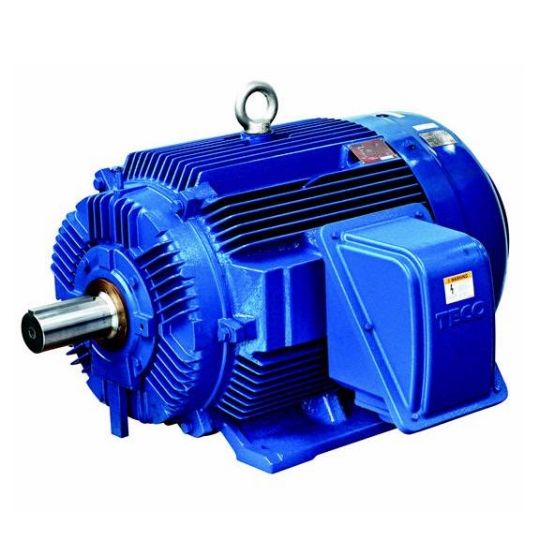

Teco Electric Motor Premium High Efficiency Squirrel Cage Induction 4P 15kW 3Ph 415V Shaft 42mm D160L Frame Foot Mount

Description

Electric Motor Premium Severe Duty High Efficiency Squirrel Cage Induction, 380/415 Volt AC, 26.1 Amp, 15 kW, 50 Hz, 3 Phase, 1465 rpm, 4 Pole, IP66, Frame: D160L, Shaft Size: 42 mm, Bi-Directional Rotation, Duty Cycle: S1, Service Factor: 1/1.15 p.u at Class B/F, Ball Bearing, Torque: 97.6 N/m, Foot Mount, Insulation Class: Class F, ?80 deg C, Cast Iron, Blue, 652 mm Length x 377 mm Height

Key Specifications

SKU	TEO004/0015D4S
Brand	Teco
Range Name	Max E3 Premium
Product Type	Motors Premium HE

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	True IP66 with porous drain plugs Class F insulation system Superior inverter rated insulation Precision and rugged cast iron construction Typical temperature rise less than Class E 1.15 service factor at 40 deg C ambient Suitable for 55 deg C ambient at rated output TECO renowned grease relief system Thermistors for frames D160 and larger IECEX Ex e, Ex nA ready to order
Standard Pack Size	1
UNSPSC Class	26101100
UOM	EA
Vendor Product	004/0015D4S
Colour	Blue
Current	26.1 Amp
Bearing Type	Anti Fiction Ball
Frame	Size D160L
Height	377 mm
Frequency	50 Hz
Insulation Class	Class F
IP Rating	IP66
Horsepower	15 kW
Mounting Method	Foot
Material	Cast Iron
Number Of Poles	4 Pole
Phase	3 Phase
Rotation	Bi Directional
Service Factor	1/1.15 p.u at Class B/F
Shaft Size	42 mm
Speed	1465 rpm
Temperature	?80 deg C
Voltage	380-415 Volt AC
Torque Rating	97.6 N/m
