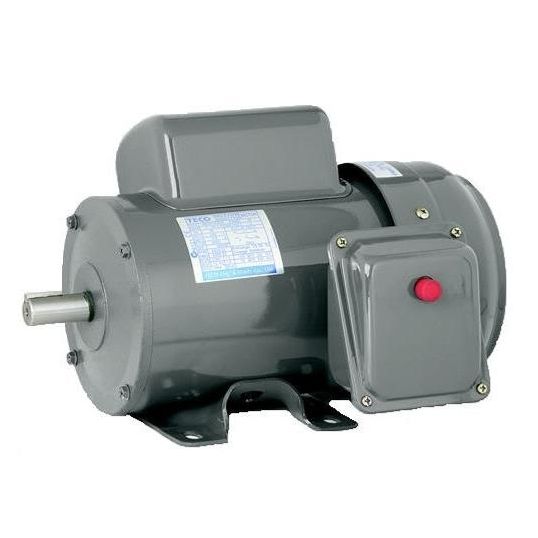

Teco Electric Motor Squirrel Cage Induction 4P 0.37kW 1Ph 240V B71 Frame Foot Mount
Description
Electric Motor Squirrel Cage Induction, 240 Volt AC, 2.9 Amp, 0.37 kW, 50 Hz, 1 Phase, 1415 rpm, 4 Pole, IP44, Frame: B71, Shaft Size: 14 mm, Bi-Directional Rotation, Duty Cycle: S1, Single Row Deep Groove Bearing, Torque: 2.45 N/m, Foot Mount, Insulation Class: Class H/F, -10 to 40 deg C, Cast Iron, 287 mm Length x 182 mm Height
Key Specifications
| SKU |
TEO031/E0.37BE4
|
|---|---|
| Brand |
Teco
|
| Range Name |
BEGY Rolled Steel Metric
|
| Product Type |
Motors SCIM
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26101100 |
| UOM | EA |
| Vendor Product | 031/E0.37BE4 |
| Current | 2.9 Amp |
| Bearing Type | Single Row Deep Groove |
| Frame | Size B71 |
| Height | 182 mm |
| Frequency | 50 Hz |
| Insulation Class | Class H/F |
| IP Rating | IP44 |
| Horsepower | 0.37 kW |
| Mounting Method | Foot |
| Material | Cast Iron |
| Number Of Poles | 4 Pole |
| Phase | 1 Phase |
| Rotation | Bi Directional |
| Shaft Size | 14 mm |
| Speed | 1415 rpm |
| Temperature | -10 to 40 deg C |
| Voltage | 240 Volt AC |
| Torque Rating | 2.45 N/m |
