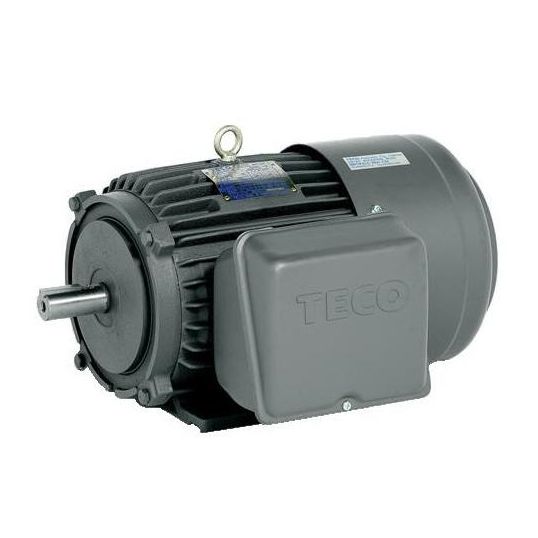

Teco Electric Motor Squirrel Cage Induction 2P 4kW 1Ph 240/480V D112M Frame Foot Mount

Description

Electric Motor Squirrel Cage Induction, 240/480 Volt AC, 25/12.5 Amp, 4 kW, 50 Hz, 1 Phase, 2900 rpm, 2 Pole, IP44, Frame: D112M, Shaft Size: 28 mm, Bi-Directional Rotation, Duty Cycle: S1, Single Row Deep Groove Bearing, Torque: 13.1 N/m, Foot Mount, Insulation Class: Class H/F, -10 to 40 deg C, Cast Iron, 449 mm Length x 265 mm Height

Key Specifications

SKU	TEO032/E0004BE2
Brand	Teco
Range Name	BECY Cast Iron Metric
Product Type	Motors SCIM

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Totally enclosed fan cooled Highest quality insulation system utilizing Class H and F materials Low temperature rise for substantial thermal reserve Continuous rated, duty type S1 Steel terminal/capacitor box and fan cover Manual overload protection
Standard Pack Size	1
UNSPSC Class	26101100
UOM	EA
Vendor Product	032/E0004BE2
Current	25/12.5 Amp
Bearing Type	Single Row Deep Groove
Frame	Size D112M
Height	265 mm
Frequency	50 Hz
Insulation Class	Class H/F
IP Rating	IP44
Horsepower	4 kW
Mounting Method	Foot
Material	Cast Iron
Number Of Poles	2 Pole
Phase	1 Phase
Rotation	Bi Directional
Shaft Size	28 mm
Speed	2900 rpm
Temperature	-10 to 40 deg C
Voltage	240-480 Volt AC
Torque Rating	13.1 N/m
