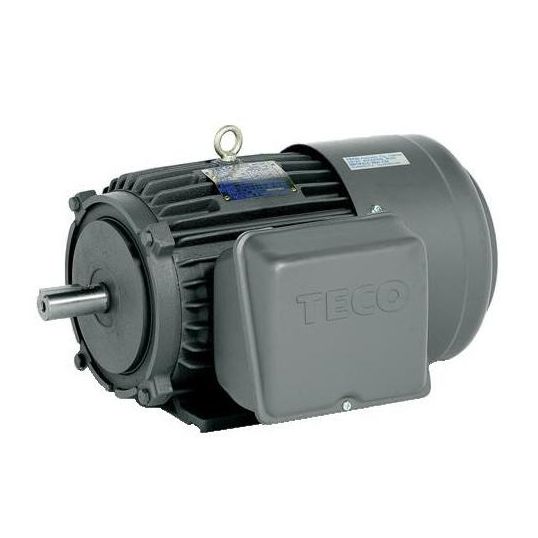

Teco Electric Motor Squirrel Cage Induction 4P 5.5kW 1Ph 240/480V D132S Frame Foot Mount

chevron-left

Description

chevron-down
Electric Motor Squirrel Cage Induction, 240/480 Volt AC, 33/16.5 Amp, 5.5 kW, 50 Hz, 1 Phase, 1465 rpm, 4 Pole, IP44, Frame: D132S, Shaft Size: 38 mm, Bi-Directional Rotation, Duty Cycle: S1, Single Row Deep Groove Bearing, Torque: 36 N/m, Foot Mount, Insulation Class: Class H/F, -10 to 40 deg C, Cast Iron, 508 mm Length x 310 mm Height

Key Specifications

chevron-down
SKU
TEO033/E0005BE4
Brand
Teco
Range Name
BECY Cast Iron Metric
Product Type
Motors SCIM

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Totally enclosed fan cooled
  • Highest quality insulation system utilizing Class H and F materials
  • Low temperature rise for substantial thermal reserve
  • Continuous rated, duty type S1
  • Steel terminal/capacitor box and fan cover
  • Manual overload protection
Standard Pack Size 1
UNSPSC Class 26101100
UOM EA
Vendor Product 033/E0005BE4
Current 33/16.5 Amp
Bearing Type Single Row Deep Groove
Frame Size D132S
Frequency 50 Hz
Height 310 mm
Horsepower 5.5 kW
Insulation Class Class H/F
IP Rating IP44
Material Cast Iron
Mounting Method Foot
Number Of Poles 4 Pole
Phase 1 Phase
Shaft Size 38 mm
Rotation Bi Directional
Speed 1465 rpm
Temperature -10 to 40 deg C
Torque Rating 36 N/m
Voltage 240-480 Volt AC
