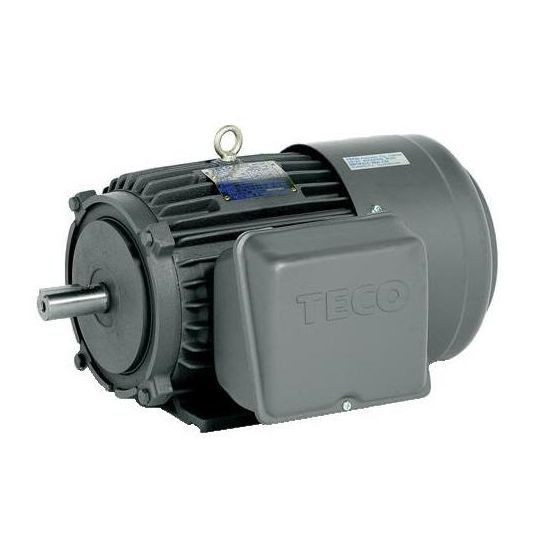

Teco Electric Motor Squirrel Cage Induction 2P 2.2kW 1Ph 240V D90L Frame Flange Mount

Description

Electric Motor Squirrel Cage Induction, 240 Volt AC, 13.1/6.65 Amp, 2.2 kW, 50 Hz, 1 Phase, 2895 rpm, 2 Pole, IP44, Frame: D90L, Shaft Size: 24 mm, Bi-Directional Rotation, Duty Cycle: S1, Single Row Deep Groove Bearing, Torque: 7.3 N/m, Flange Mount, Insulation Class: Class H/F, -10 to 40 deg C, Cast Iron, 431 mm Length x 200 mm Height

Key Specifications

SKU	TEO034/E02.2BV2
Brand	Teco
Range Name	BECY Cast Iron Metric
Product Type	Motors SCIM

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Totally enclosed fan cooled Highest quality insulation system utilizing Class H and F materials Low temperature rise for substantial thermal reserve Continuous rated, duty type S1 Steel terminal/capacitor box and fan cover Manual overload protection
Standard Pack Size	1
UNSPSC Class	26101100
UOM	EA
Vendor Product	034/E02.2BV2
Current	13.1/6.65 Amp
Bearing Type	Single Row Deep Groove
Frame	Size D90L
Height	200 mm
Frequency	50 Hz
Insulation Class	Class H/F
IP Rating	IP44
Horsepower	2.2 kW
Mounting Method	Flange
Material	Cast Iron
Number Of Poles	2 Pole
Phase	1 Phase
Rotation	Bi Directional
Shaft Size	24 mm
Speed	2895 rpm
Temperature	-10 to 40 deg C
Voltage	240 Volt AC
Torque Rating	7.3 N/m
