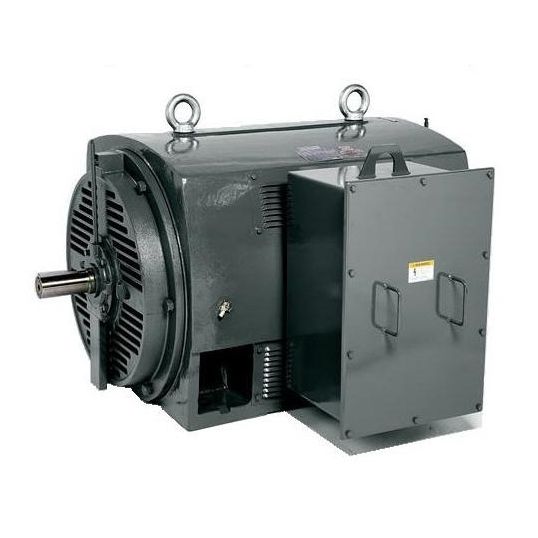

Teco Electric Motor Squirrel Cage Induction 2P 18.5kW 3Ph 415V C160L Frame Horizontal Foot Mount

Description

Electric Motor Squirrel Cage Induction, 415 Volt AC, 32 Amp, 18.5 kW, 50 Hz, 3 Phase, 2915 rpm, 2 Pole, IP23, Frame: C160L, Shaft Size: 48 mm, Clockwise Rotation, Duty Cycle: S1, Vacuum De-Gassed High Quality Open Bearing, Torque: 60.61 N/m, Horizontal Foot Mount, Insulation Class: Class F, <80 deg C, Cast Iron, Light Grey, 572 mm Length x 375 mm Height

Key Specifications

SKU	TEO054/0018C2
Brand	Teco
Range Name	Open Drip Proof
Product Type	Motors SCIM

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Highest quality insulation system utilizing Class H and F materials Low temperature rise for substantial thermal reserve Continuous rated, duty type S1 Cast iron/fabricated steel construction with side mounted terminal box
Standard Pack Size	1
UNSPSC Class	26101100
UOM	EA
Vendor Product	054/0018C2
Current	32 Amp
Colour	Light Grey
Bearing Type	Vacuum De-Gassed High Quality Open
Frame	Size C160L
Frequency	50 Hz
Height	375 mm
Horsepower	18.5 kW
Insulation Class	Class F
IP Rating	IP23
Material	Cast Iron
Mounting Method	Horizontal Foot
Number Of Poles	2 Pole
Phase	3 Phase
Shaft Size	48 mm
Rotation	Clockwise
Speed	2915 rpm
Temperature	<80 deg C
Torque Rating	60.61 N/m
Voltage	415 Volt AC
