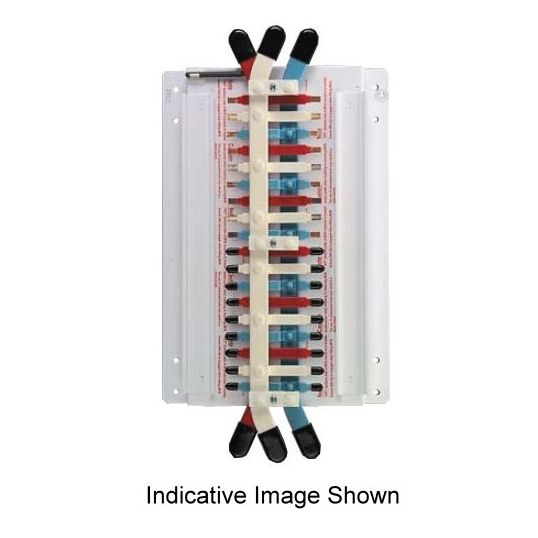

NHP MCB Busbar Chassis Assemblies Universal Feed 250A 36P Polyolefin PPA-441 Insulation IP20

Description

MCB Busbar Chassis Assemblies, Universal Feed, 415 Volt AC, 250 Amp, Number of Poles: 36, 3 (Red, White and Blue), 35mm DIN Rail, For Use With: DIN-T MCBs and RCDs, IP20, Polyolefin PPA-441 Insulation, 368mm Height x 250mm Width x 82mm Depth

Key Specifications

Barcode (EAN-13)	9321807192264
SKU	TERCD2-36/18-3U
Brand	NHP
Range Name	Concept Din-T
Product Type	Busbar Chassis MCB

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Withstand rating 250 Amp/20 kA for 0.2 sec Splayed busbar to suit 160 Amp and 250 Amp switch Top and bottom feed - splayed top and bottom Tee-offs stripped and 50 percent capped Top power feed stripped and capped Improved insulation coating
Standard Pack Size	1
UNSPSC Class	39121100
UOM	EA
Vendor Product	CD236183U
Configuration	CD Chassis For Terasaki Din-T Circuit Breakers
Current	250 Amp
Dimensions	368mm Height x 250mm Width x 82mm Depth
IP Rating	IP20
Material	Polyolefin PPA-441 Insulation
Mounting Method	35mm DIN Rail
Number Of Poles	36P
Voltage	415 Volt
