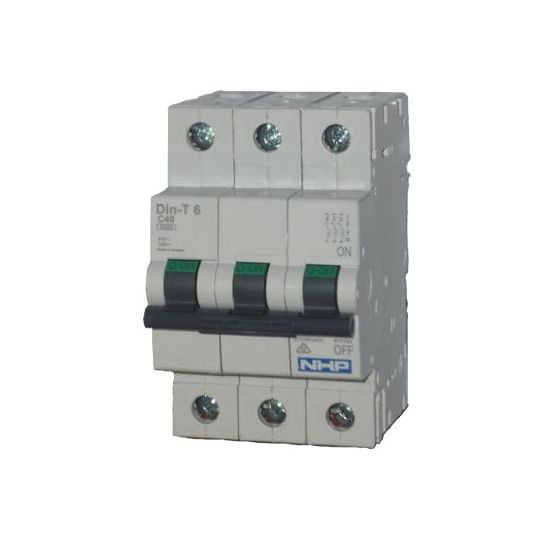

Terasaki Miniature Circuit Breaker C Curve 40Amp 6 kA 3Pole 3Module 54mm DIN 35mm Rail Mount
Description
Miniature Circuit Breaker C Curve, 415 Volt, 40 Amp, 50/60 Hz, 6 kA Interrupt Capacity, 3 Module 54 mm, 3 Pole, 2 Phase Phase, 4.5 Nm Tightening Torque, 10000 Cycles Electrical Life, IP20/40, DIN Rail Mounting, 25 to 55 deg C, 86 mm Height, 54 mm Width, 76 mm Depth
Key Specifications
| Barcode (EAN-13) |
5413656757856
|
|---|---|
| SKU |
TERDTCB6340C
|
| Brand |
Terasaki
|
| Range Name |
Din-T6
|
| Product Type |
Mini Circuit Breakers
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | DTCB6340C-NLA |
| Current | 40 Amp |
| Depth | 76 mm |
| Electrical Life | 10000 Cycles |
| Frequency | 50/60 Hz |
| Height | 86 mm |
| Interrupt Capacity | 6 kA |
| IP Rating | IP20/40 |
| Modules | 3 Module 54 mm |
| Mounting Method | DIN Rail |
| Number Of Poles | 3 Pole |
| Phase | 2 Phase |
| Temperature | 25 to 55 deg C |
| Tightening Torque | 4.5 Nm |
| Voltage | 415 Volt |
| Width | 54 mm |
