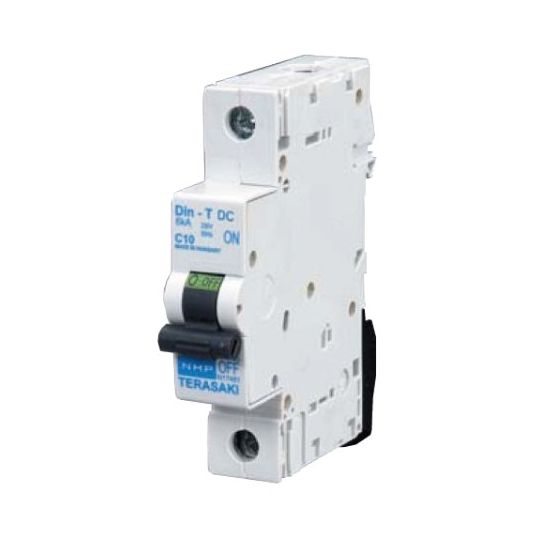

Terasaki Miniature Circuit Breaker C Curve 2Amp 6 kA 1 Number of Poles 1Module 18mm DIN Rail Mount
Description
Miniature Circuit Breaker C Curve, 240 Volt AC/250 Volt DC, 2 Amp, 50/60 Hz, 6 kA Interrupt Capacity, 1 Module 18 mm, 1 Pole, 4.5 Nm Tightening Torque, 1000 Cycles Electrical Life, IP20/40, DIN Rail Mounting, 25 to 55 deg C, 86 mm Height, 18 mm Width, 76 mm Depth
Key Specifications
| Barcode (EAN-13) |
5413656757269
|
|---|---|
| SKU |
TERDTCBDC102C
|
| Brand |
Terasaki
|
| Range Name |
Din-T DC
|
| Product Type |
Mini Circuit Breakers
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | DTCBDC102C-NLA |
| Current | 2 Amp |
| Depth | 76 mm |
| Electrical Life | 1000 Cycles |
| Frequency | 50/60 Hz |
| Height | 86 mm |
| Interrupt Capacity | 6 kA |
| IP Rating | IP20/40 |
| Modules | 1 Module 18 mm |
| Mounting Method | DIN Rail |
| Number Of Poles | 1 Pole |
| Temperature | 25 to 55 deg C |
| Tightening Torque | 4.5 Nm |
| Voltage | 240 Volt AC/250 Volt DC |
| Width | 18 mm |
