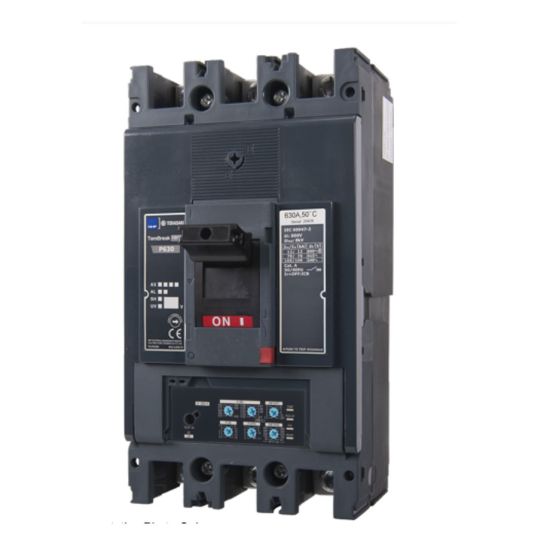

Terasaki TemBreak Pro Moulded Case Circuit Breaker 630A 36kA 3P 24-690VAC 250-630A Thermal Magnetic Trip

Description

Moulded Case Circuit Breaker, 24-690 Volt AC, 630 Amp, 50/60 Hz, 36 kA Interrupt Capacity, 3 Pole, 250-630 Amp Thermal Setting, 630 AF Frame, Thermal Magnetic Trip, Bolt Terminal, Panel Mount,-5 to 70 deg C, 260mm Height x 140mm Width x 145mm Depth

Key Specifications

SKU	TERP630F3630BE
Brand	Terasaki
Range Name	TemBreak Pro
Product Type	MCCBs

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	General purpose power distribution, motor starting as well as energy metering and communications Current limiting device, reduces fault let through energy for increased installation safety Direct opening and indication of main contact status-maximising machine and user safety Complies to AS / NZS 60947-2, IEC 60947-2 and CE Panel mount standard, with other mounting options 3 or 4 pole versions Fault ratings; 25, 36, 50, 70 or 110 kA Trip unit options include thermal magnetic or electronic types
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	P630F3630BE
Current	630 Amp
Depth	145 mm
Frame Type	630 AF
Frequency	50/60 Hz
Height	260 mm
Interrupt Capacity	36 kA
Mounting Method	Panel
Number Of Poles	3 Pole
Temperature	-5 to 70 deg C
Terminal Type	Bolt
Thermal Setting	250-630 Amp
Trip Type	Thermal Magnetic
Voltage	24-690 Volt
Width	140 mm
