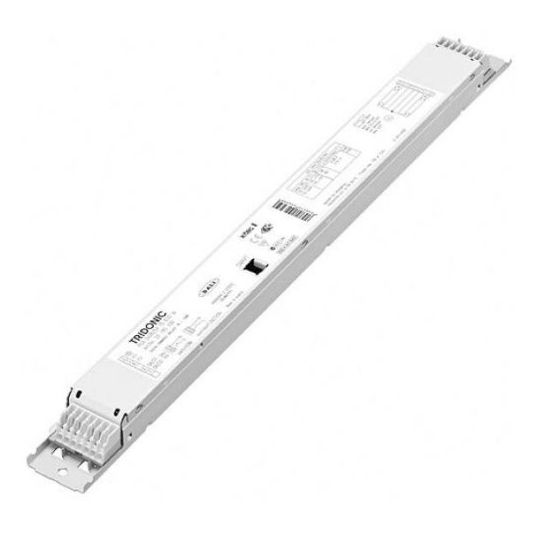

Tridonic Electronic Transformer 220-240V IP20 360mm F/1x28/54 T5 Eco 1 Lamp Luminaire

chevron-left

Description

chevron-down
Electronic Transformer, T5 Fluorescent, 220-240 Volt, 14/80 Watt, 50/60 Hz, 0.95 Ballast Factor, Dimmable, IP20, For Use With 1x28-54 T5 Eco 1 Lamp Luminaire, 25 to 75 deg C, 360 mm Length, 30 mm Width, 21 mm Height

Key Specifications

chevron-down
Barcode (EAN-13)
9006210355283
SKU
THN22185099
Brand
Tridonic
Product Type
Lighting Spares

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Processor-controlled ballast with xitec II inside
  • Highest possible energy class CELMA EEI =A1 BAT
  • Noise-free precise control via DALI or DSI signal, switch DIM or corridor FUNCTION
  • Nominal life-time up to 100000 hrs (at ta 50 deg C with a failure rate <=0 .2% Per 1000 hrs)
  • Multi lamp management
  • EN 55015, EN 60929, EN 61000-3-2, EN 61347-2-3, EN 61547, Acc. To EN 50172 for emergency light installations, EN 50172, IEC 60929, IEC 61000-3-2, IEC 61347-2-3, IEC 61547, IEC 62386 (according to DALi standard V1)
  • EL, EAC, C Tick,CE, ENEC, Rohs
Standard Pack Size 1
UNSPSC Class 39101900
UOM EA
Vendor Product 22185099
Ballast Factor 0.95
Dimmable Dimmable
Frequency 50/60 Hz
For Use With 1x28-54 T5 Eco 1 Lamp Luminaire
Height 21 mm
IP Rating IP20
Lamp Type T5 Fluorescent
Temperature 25 to 75 deg C
Voltage 220-240 Volt
Width 30 mm
