Trina Solar Panel 370W PERC Monocrystalline 120 Cells 34.2V 10.82A 35mm Anodized Aluminum Alloy Black PERC Technology

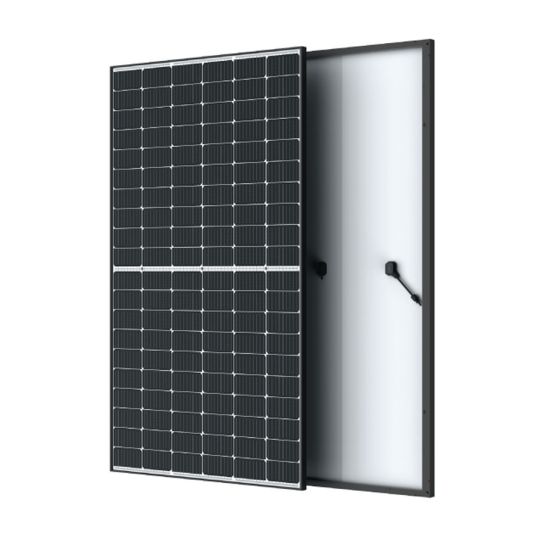

$Trina\Trina_TSM-DD08M.08-ll.JPG$

Description

Founded in 1997, Trina Solar is the world's leadingtotal solution provider for solar energy. With localpresence around the globe, Trina Solar is able toprovide exceptional service to each customer ineach market and deliver our innovative, reliableproducts with the backing of Trina as a strong,bankable brand. Trina Solar now distributes its PVproducts to over 100 countries all over the world.We are committed to building strategic, mutuallybene cial collaborations with installers, developers,distributors and other partners in driving smartenergy together.

Key Specifications

SKU	TNATSM-370DD08M.08II
Brand	TRINA
Product Type	Solar Panels

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	High power Mono Perc- Up to 380 Watt front power and 20.7% module e ciency with half-cut and MBB (Multi Busbar) technology bringing more BOS savings Lower resistance of half-cut and good re ection e ect of MBB ensure high power High reliability- Ensured PID resistance through cell process and module material control Resistant to salt, acid and ammonia Mechanical performance: Up to 5400 Pa positive load and 2400 Pa negative loa High energy generation-Excellent IAM and low light performance validated by 3rd party with cellprocess and module material optimization
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	TSM-370DD08M.08(II)
Connector Type	PV-KBT4(female),PV-KST4(male) /TS4
Certifications	CE / TUV
Efficiency	20.20%
Frame Construction	35 mm Anodized Aluminium Alloy Black
Front Glass	3.2 mm, High Transmission, AR Coated Heat Strengthened Glass
Height	35 mm
Item Weight	20 kg
Junction Box	IP68
Max. Current	10.82 Amp
Max. System Voltage	1000 Volt DC
Model	N Type
Number Of Cells	120
Open Circuit Voltage	41.3 Volt
Operating Temperature	-40 to 85 deg C
Power Tolerance	0-5 Watt
Output Cables	Photovoltaic Technology Cable 4 sq-mm / Portrait: N 280 mm/P 280 mm / Landscape: N 1200 mm /P 1200 mm
Please Note	Technology: PERC
Short Circuit Current	11.37 Amp
Temperature Coefficient	-0.34%/ deg C
Warranty	15 Years Workmanship/ 25 Years Power
Wattage	370 Watt
Width	1040 mm
