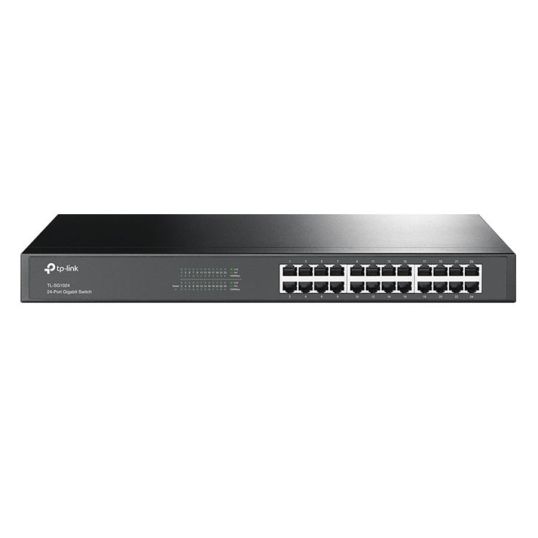

TP-Link Gigabit Ethernet Switch 24 Port 10/100/1000M 440x44x180mm

$TP-Link\TP-Link_D4196.JPG$

Description

Gigabit Ethernet Switch, 100-240 Volt AC, Outputs: 24 x 10/100/1000Mbps Auto-Negotiation RJ45 (Auto MDI/MDIX) Ports, 440mm Width, 44mm Height, 180mm Depth, Operating: 0 to 40 deg C, Storage:-40 to 70 deg C, Backbound Bandwidth 48 Gbps

Key Specifications

Barcode (EAN-13)	9321758140352
SKU	TPLD4196
Brand	TP-Link

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	All ports support Full/half duplex transfer mode for 10Mbps/100Mbps and Full duplex transfer mode for 1000Mbps Supports Auto-MDI/MDIX function Supports IEEE 802.3X flow control for full-duplex mode and back pressure flow control for half-duplex mode Store and forward Switching scheme
Standard Pack Size	6
UNSPSC Class	43223300
UOM	EA
Vendor Product	D4196
Depth	180 mm
Height	44 mm
Outputs	24 x 10/100/1000Mbps Auto-Negotiation RJ45 (Auto MDI/MDIX) Ports
Please Note	Backbound Bandwidth 48 Gbps
Product Type	simple
Temperature	Operating: 0 to 40 deg C/Storage:-40 to 70 deg C
Voltage	100-240 Volt
Width	440 mm
